What’s so special about this light …

IP rated for use in wet areas [IP65], like bathrooms and showers plus it’s fire rated. Small, practically invisible trimless GU10 recessed downlight. Clean, simple and extremely minimal. Uses a GU10 6W Max (not super bright but decent) – bulb not included. Must be installed prior to plastering.

Worth Noting

• Install into new ceilings only
• Requires screwing into MDF blocks above the ceiling for fitting (see instructions)
• Deep ceiling depth
• Fire rated: 90 min BS476 part 21
• Bulb not included
• GU10 6W
• LED bulb only
• Before ordering bulb, check length of bulb to ensure fit – MAX 58 mm LONG

Dimensions

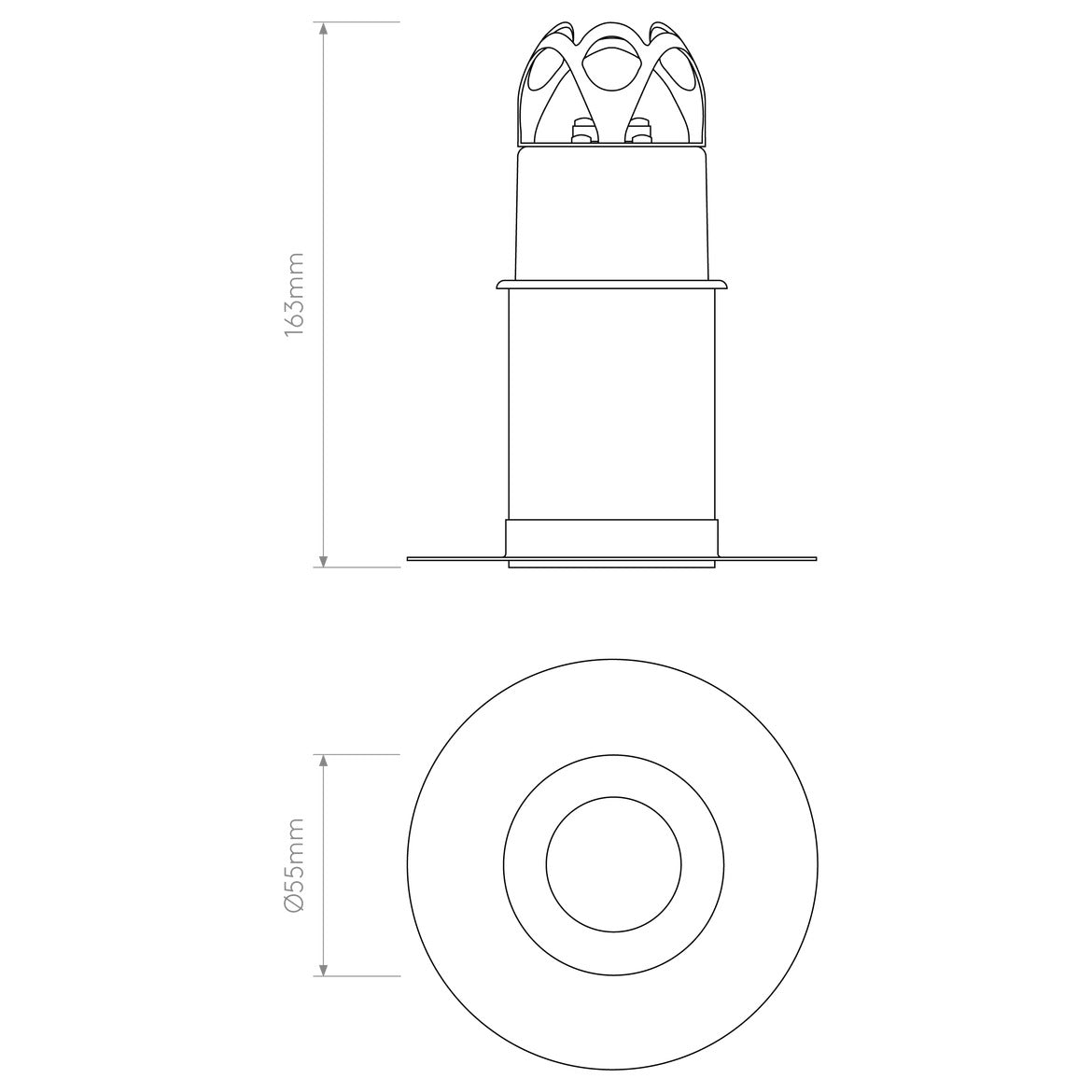

• SMALL:
• Opening: 55 mm ø
• Plaster Grill: 121 mm ø
• Recessed Depth: 163 mm D
  • Cut Out: 73 mm ø

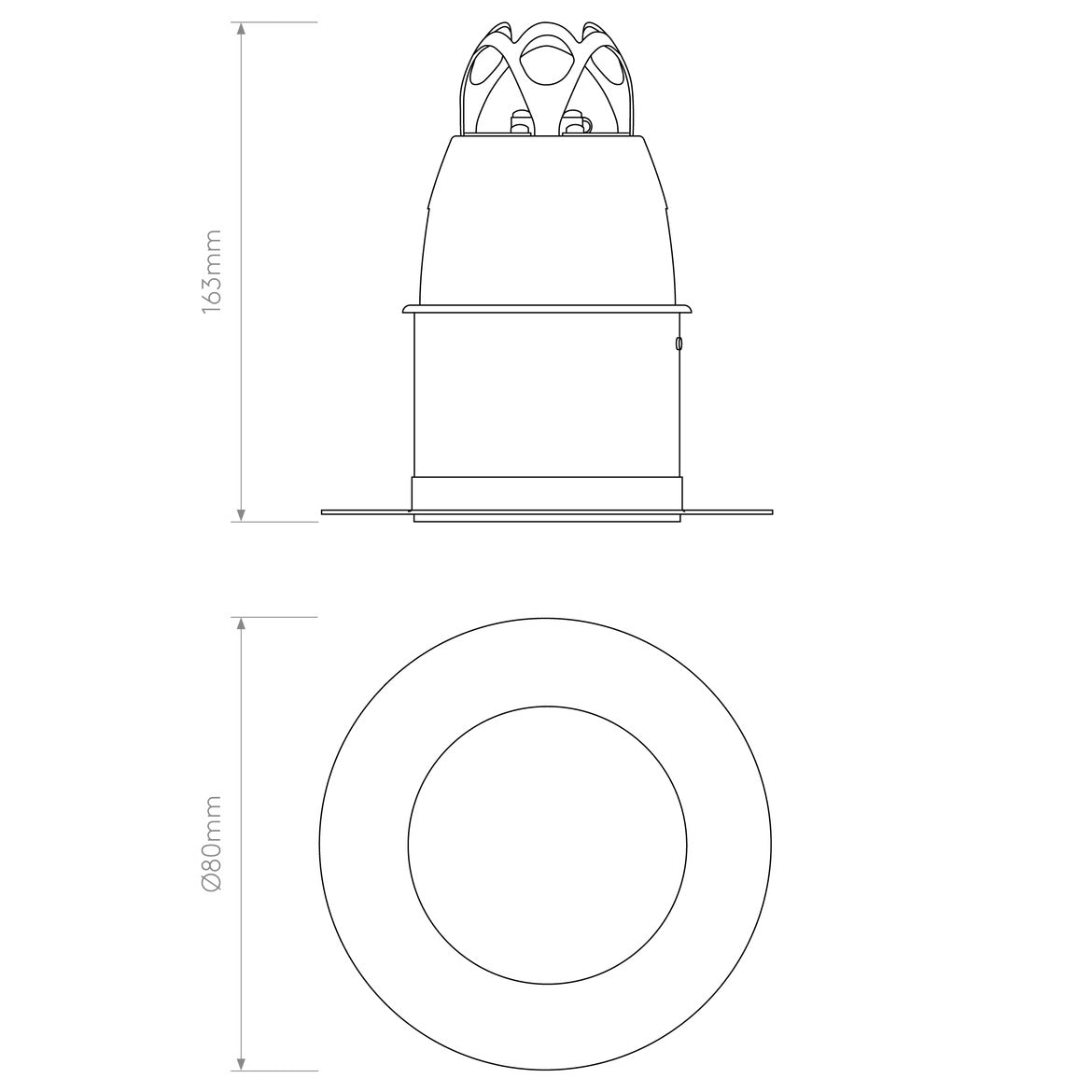

• LARGE:
• Opening: 80 mm ø
• Plaster Grill: 146 mm ø
• Recessed Depth: 163 mm D
  • Cut Out: 98 mm ø

IP Rating

• IP65

Fire Rating

• 90 min BS476 part 21

Lamping

• BULB
  • GU10
  • x1
  • WATTAGE: 6W Max
  • MAX LENGTH: 58 mm
  • Not Included

Finish

• White Metal

Control

• Triac Dimmable – but depends on the light bulb
