What’s so special about this light …

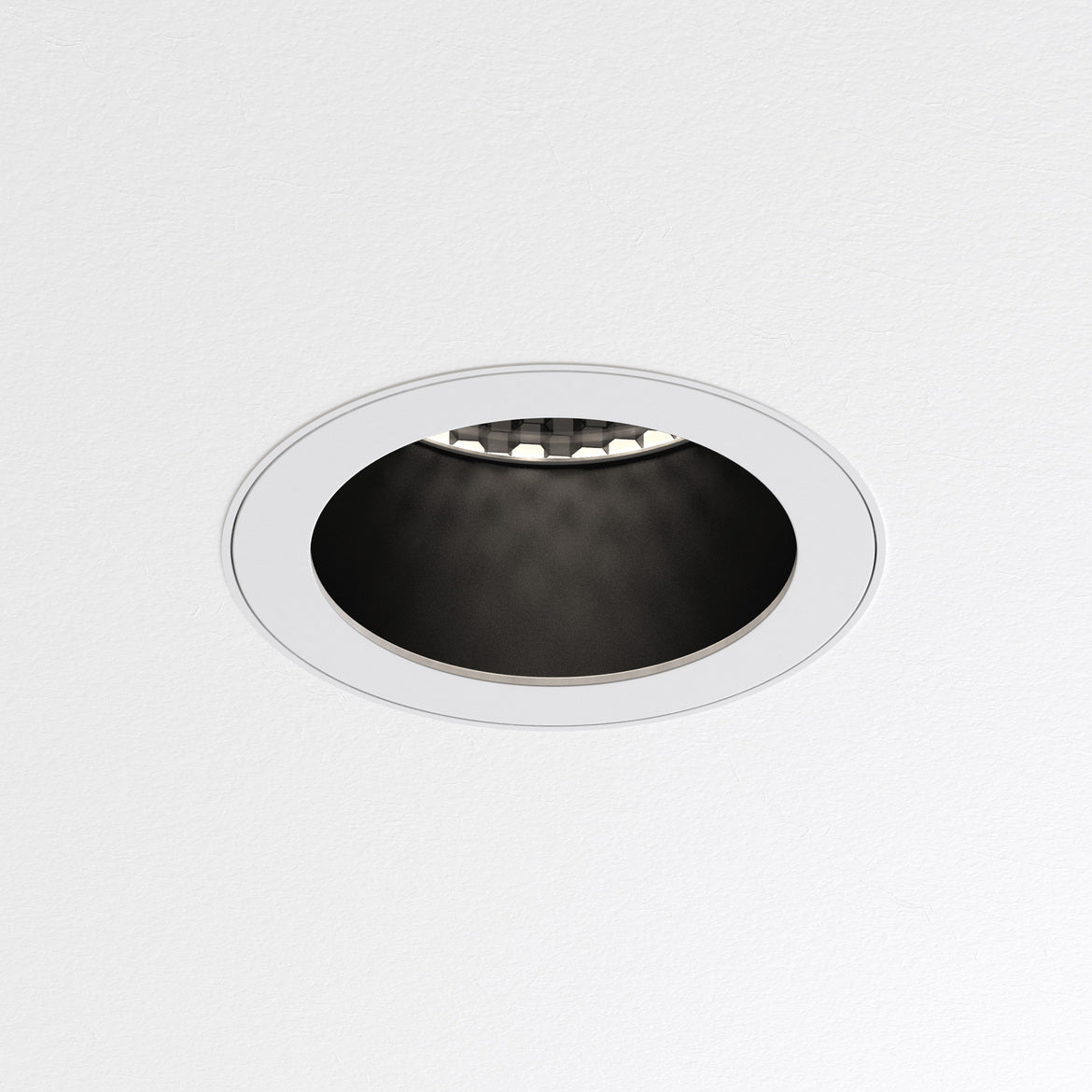

Stylish, minimal fixed trimless downlight, completely flush with ceiling for a very clean effect. Black inner baffle. Fire-rated so no need to order fire hoods separately. Optional glare guard included. Spot lights can be angled at 25º and rotated 360º. Uses a GU10 bulb, not included.

Worth Noting

• MUST BE INSTALLED PRIOR TO PLASTERING (it's plastered in)
• SCREWS NOT INCLUDED (for fixing the mesh flange to the board)
• Do NOT leave a gap or will no longer be fire rated (obviously)
• THE FIXED AND ADJUSTABLE FLUSH DOWNLIGHTS HAVE DIFFERENT CUT OUT SIZES, PLS CHECK CAREFULLY
• Minimum 150 mm recessed depth
• Minimum 150 mm distance to insulation
• Minimum 200 mm distance to joists
• Bulb not included
• GU10 6W

• Before ordering bulb, check length of bulb to ensure fit

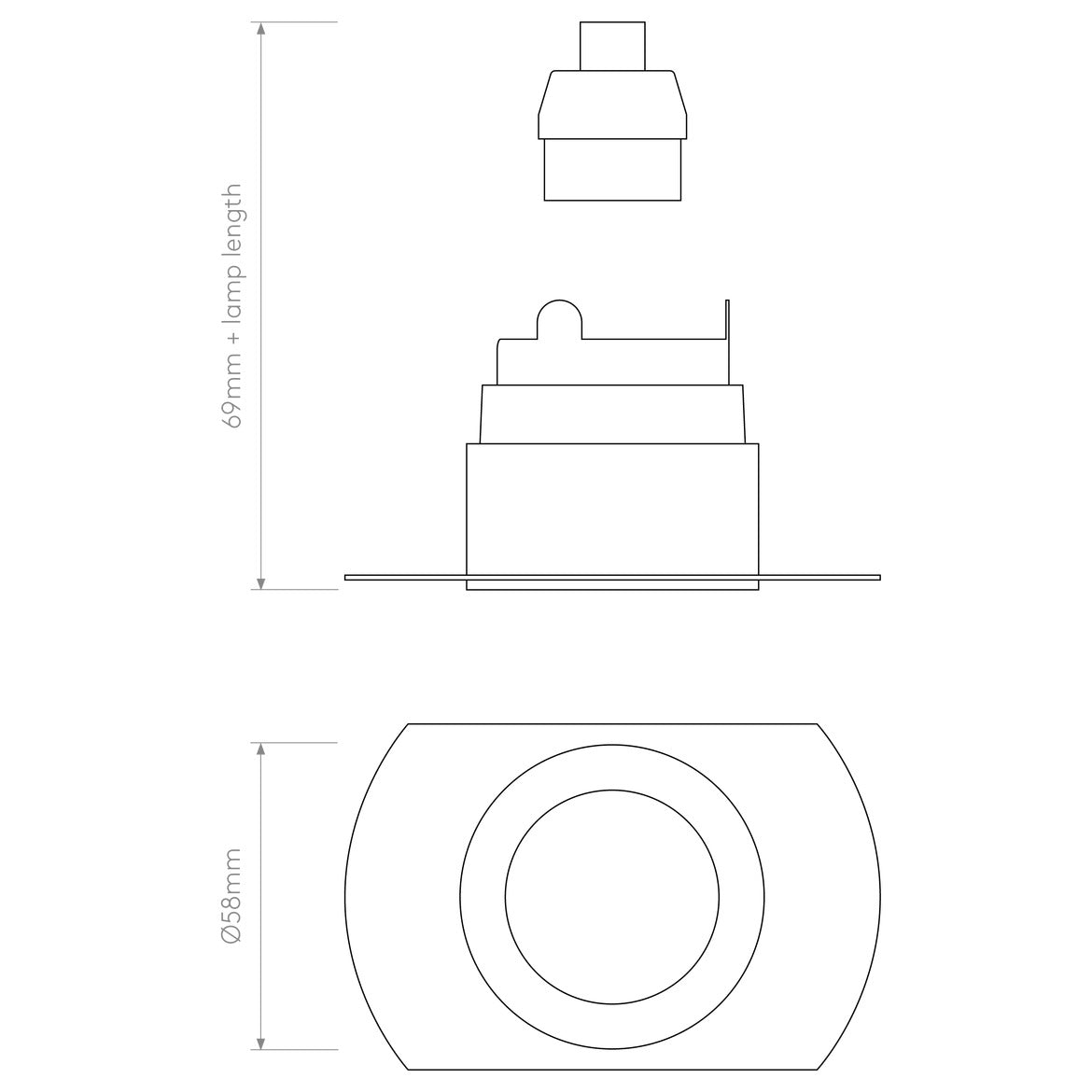

Dimensions

• Dimensions: 58 mm ø
• Recessed Depth: 150 mm D
  • Cut Out: 62 mm ø

IP Rating

• IP65

Fire Rating

• 30 min, 60 min & 90 min EN1365-2

Lamping

• BULB
  • GU10
  • x1
  • WATTAGE: 6W Max
  • MAX LENGTH: 57
  • Not Included

Finish

• White Metal
• Black Inner Baffle

Control

• Triac Dimmable – but depends on the light bulb
