What’s so special about this light …

Extra thin trim. Clean, minimal, white square well-priced downlight with an adjustable baffle up to 30º and fire-rated. Simple white square shape which includes an optional honeycomb glare guard. Uses a GU10 lamp, not included. IP20.

Worth Noting

• Minimum 1 metre distance between each light
• Requires a 150 mm ceiling void clearance
• Minimum 200 mm from solid side surfaces (joists, walls, etc)
• Spring clips
• Square cut out (86 mm S)
• Glare guard included
• Adjustable 30º
• Rotation adjustable angle 360º
• Fire rated: 30 min, 60 min & 90 min EN1365-2
• Bulb not included
• LED bulb only
• Before ordering bulb, check length of bulb to ensure fit – MAX 57 mm LONG

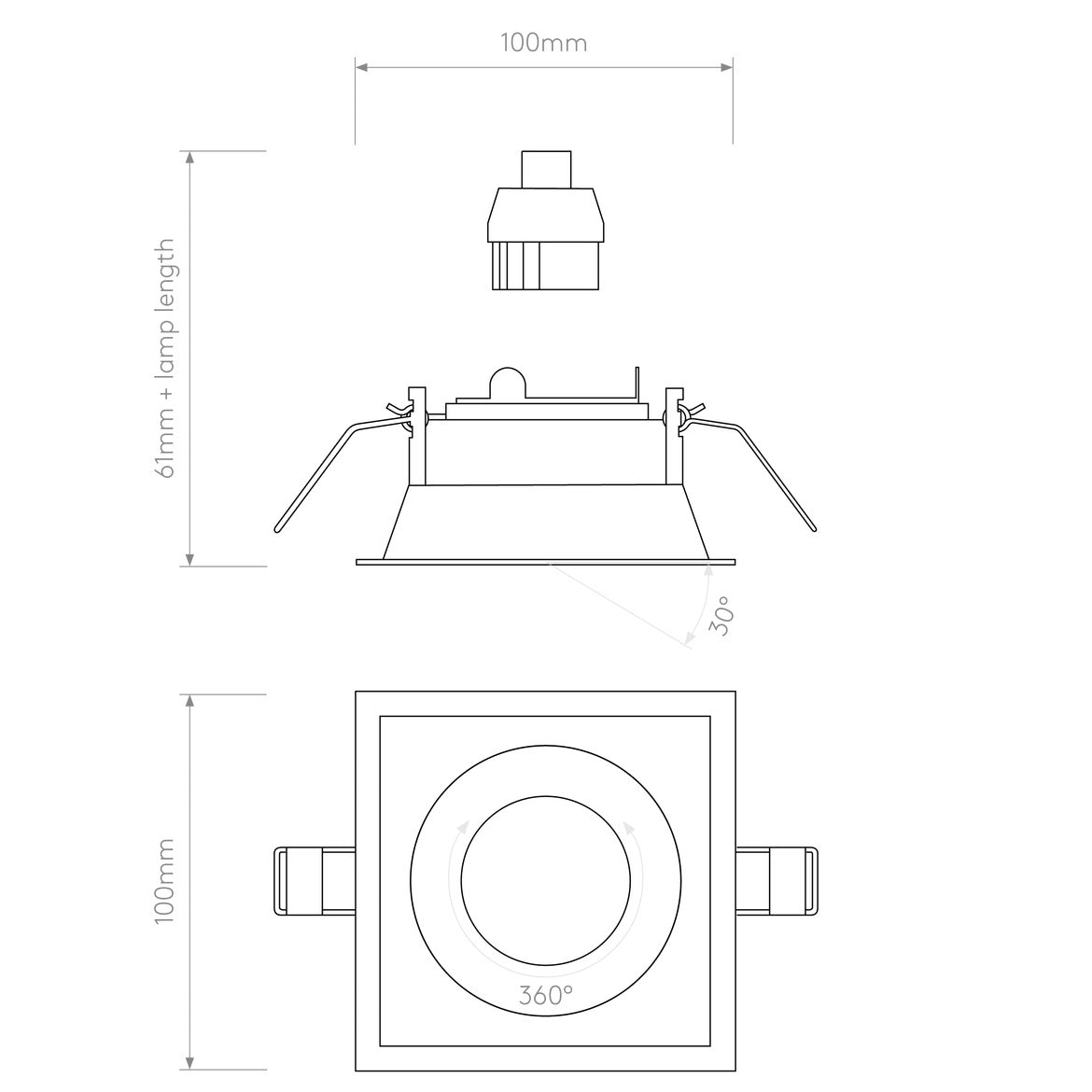

Dimensions

• 100 mm S
• Recessed Depth: 150 mm D
  • MINIMUM 150 mm clearance required at the top and sides
    • Cut Out: 86 mm Square

IP Rating

• IP20

Fire Rating

• 30 min, 60 min & 90 min EN1365-2

Lamping

• BULB
  • GU10
  • x1
  • WATTAGE: 6W Max LED
  • MAX LENGTH: 57 mm
  • Not Included

Finish

• Black Metal
• Clear Glass Diffuser
• Black Honeycomb Glare Guard

Control

• Triac Dimmable – but depends on the light bulb
