Mark, Downlight, LED, 3000K, 24vDC
Mark, Downlight, LED, 3000K, 24vDC
What’s so special about this light …

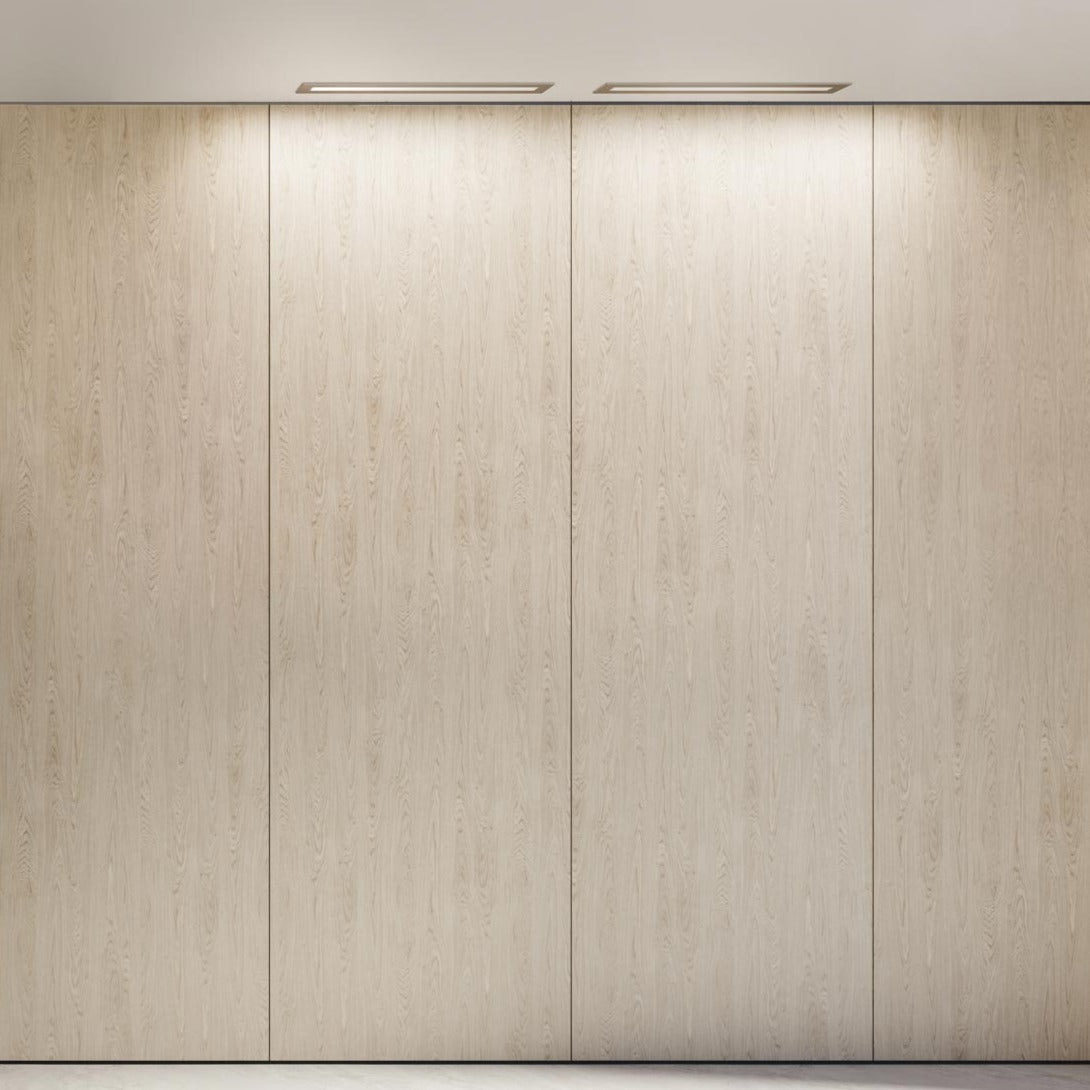

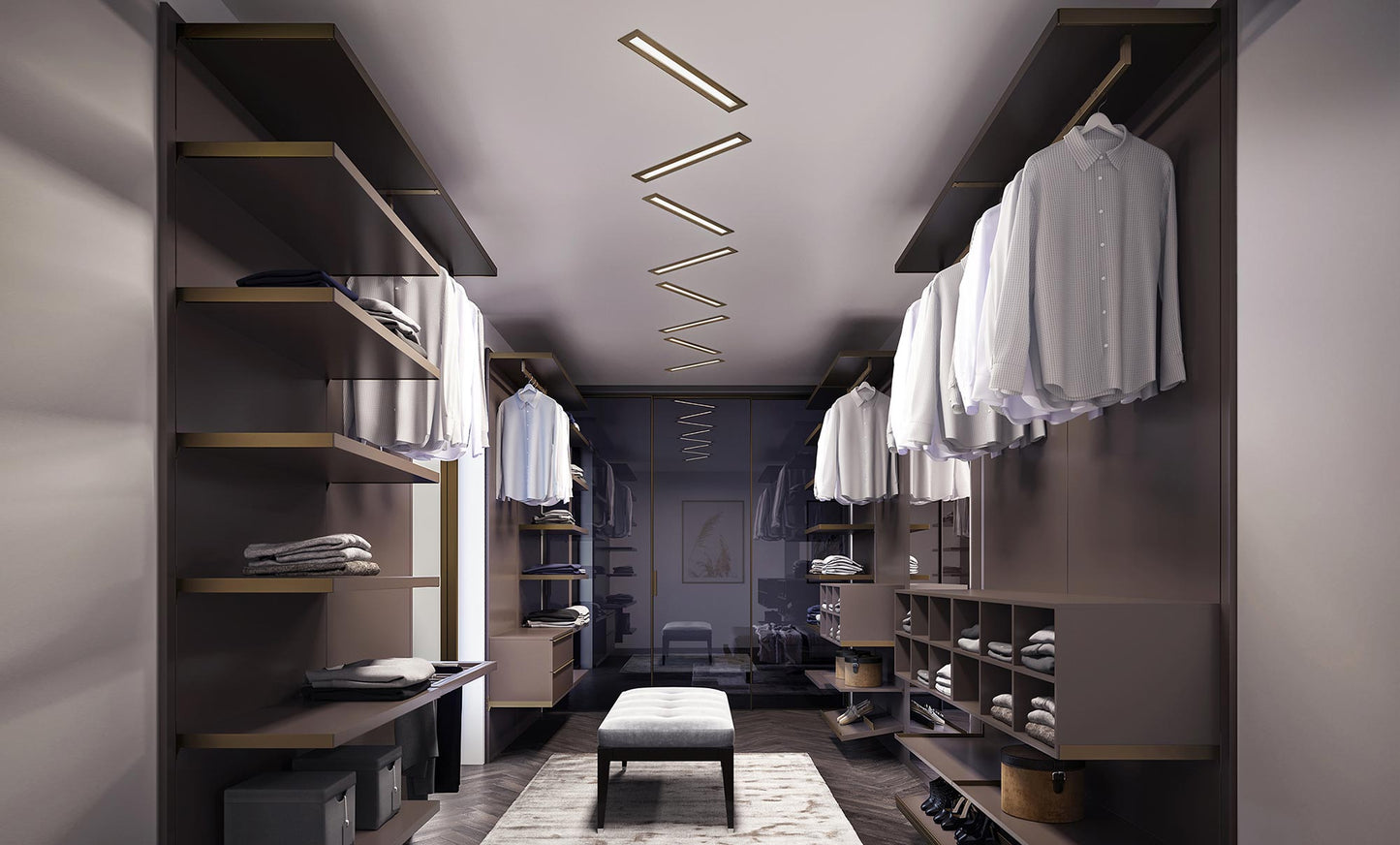

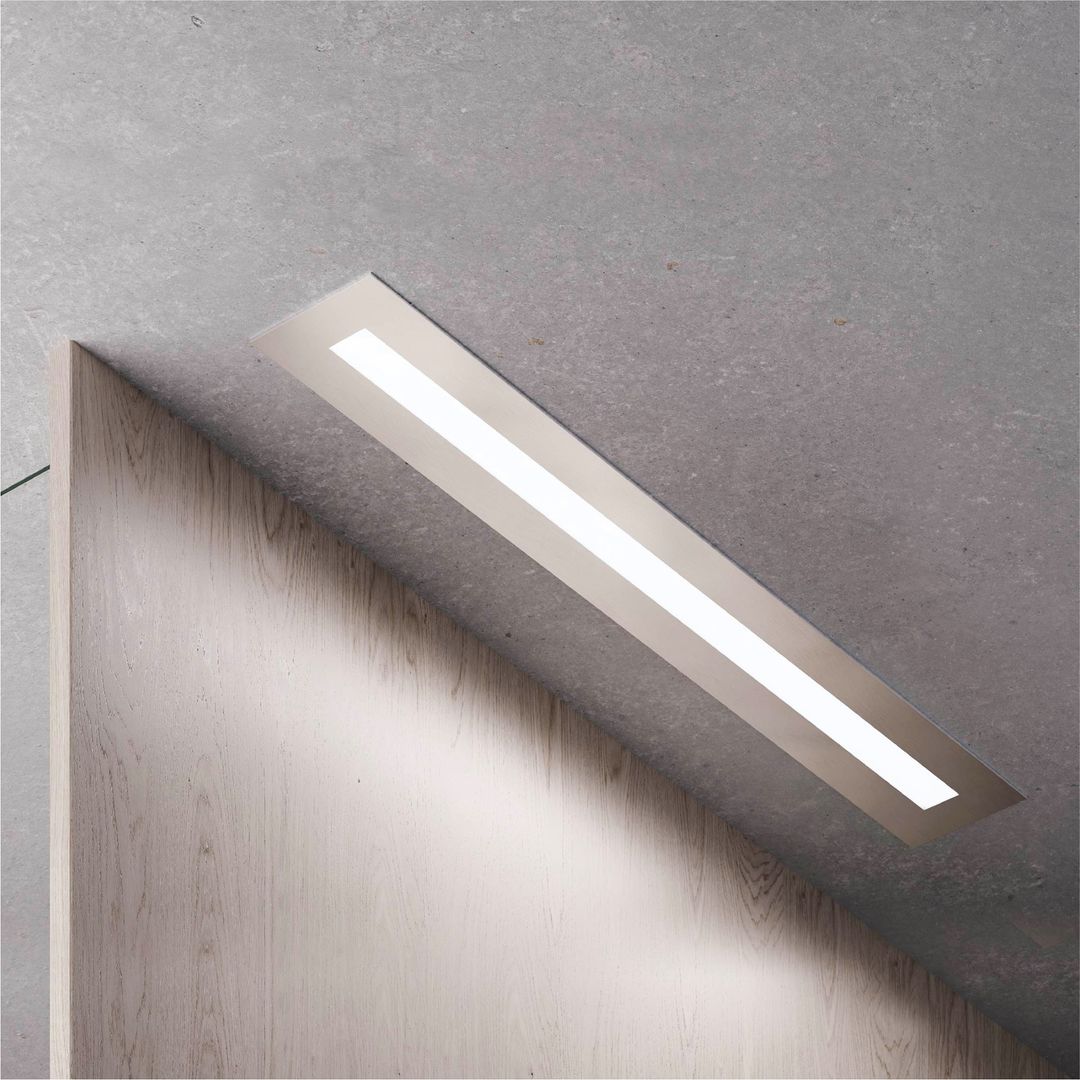

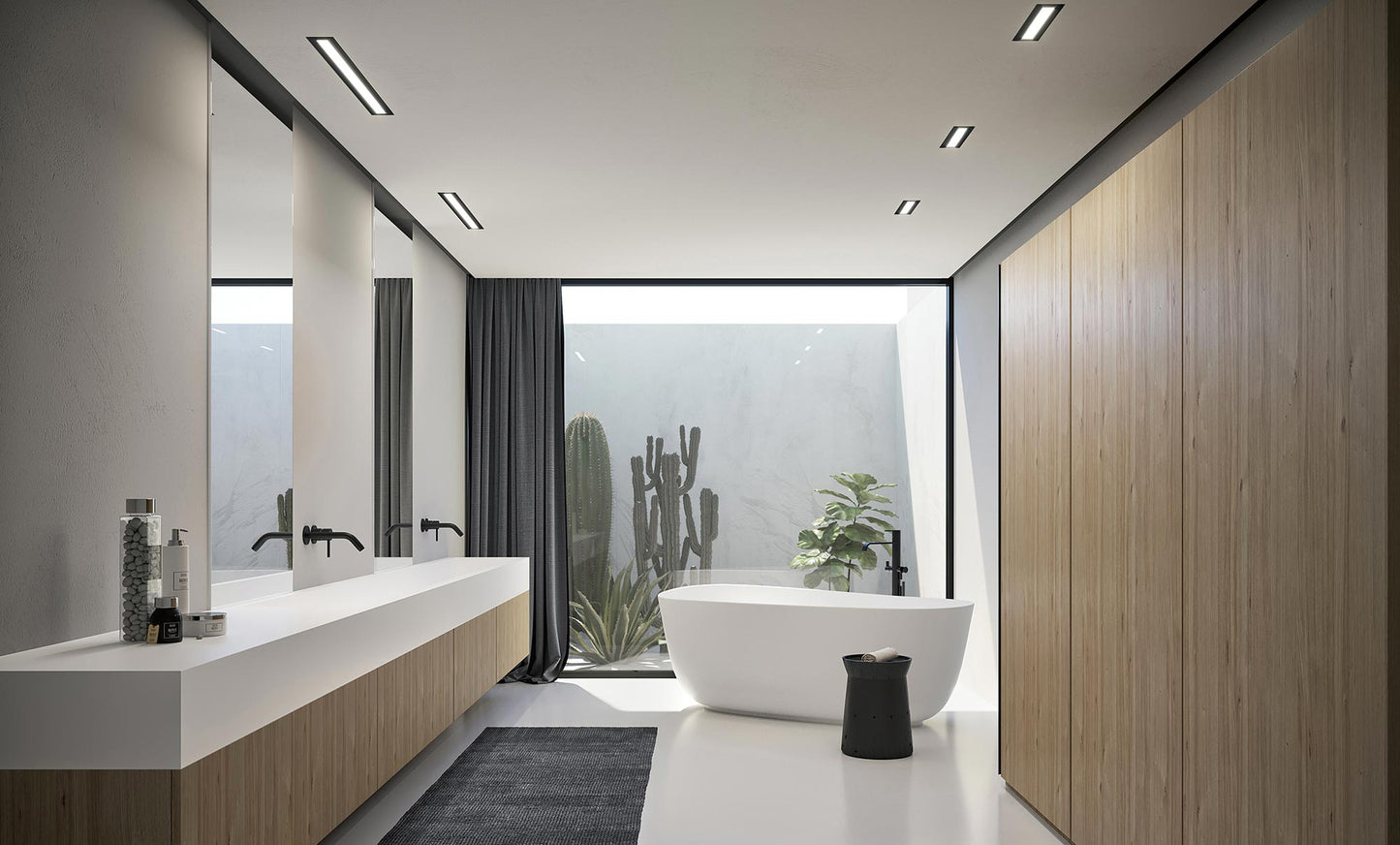

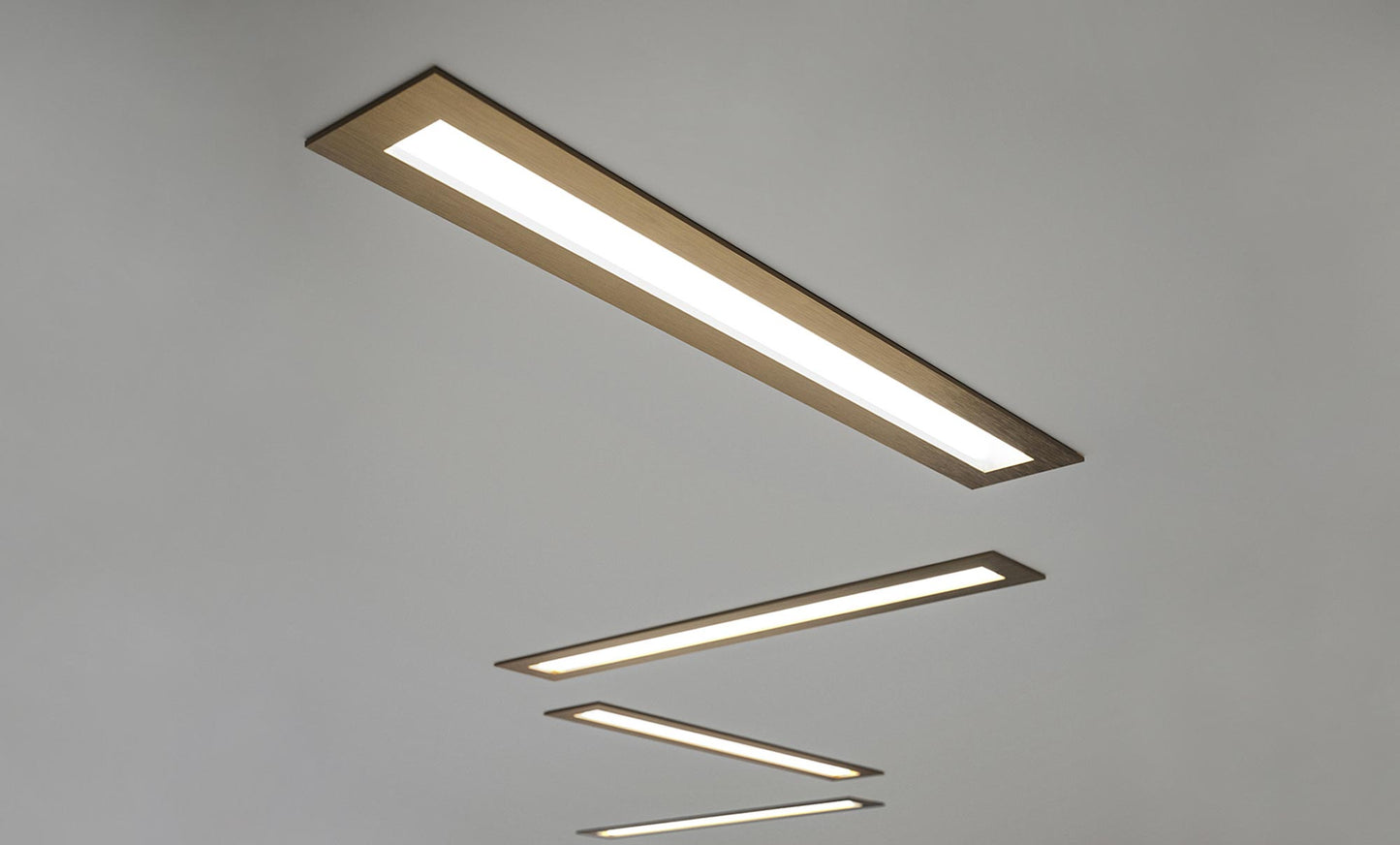

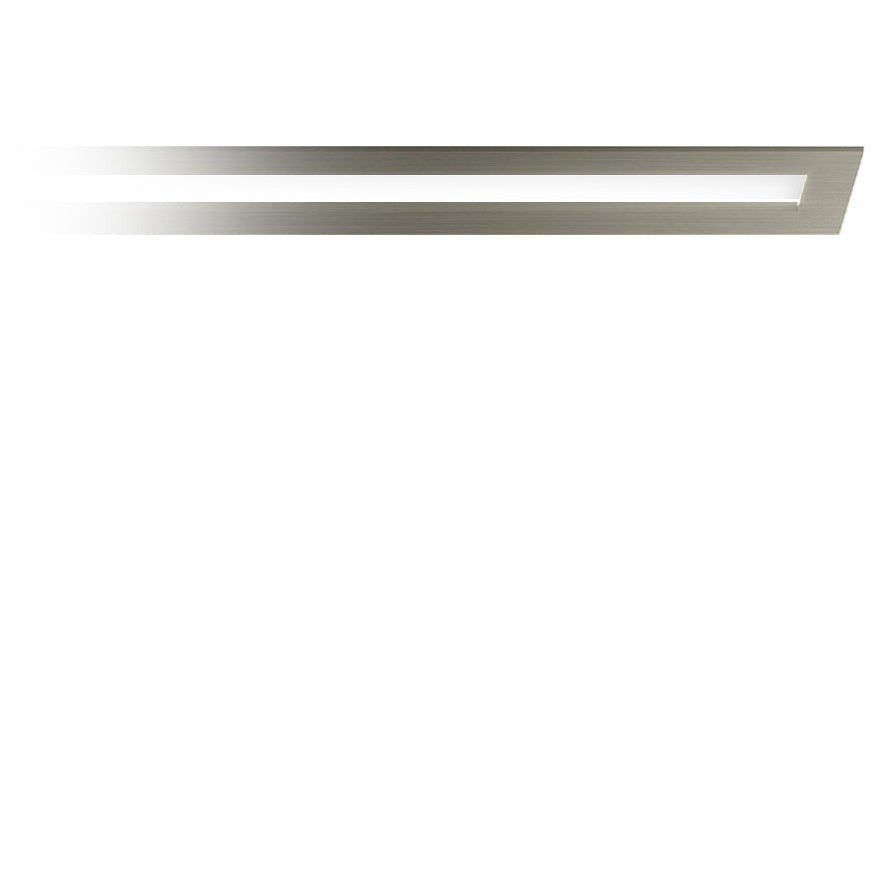

Slim, powerful rectangle recessed LED downlight available in 2 lengths and several finishes with an incredible ability to wash walls with even, nearly shadow-free light. You can also mount it into the wall to wash the floor with even light. Shallow recessed depth for more installation opportunities than you'd get with a deeper fitting.
Lighting fixture for ceiling or wall built-in installation for interiors, with direct light emission. Built-in structure in plasterboard, in aluminium in white polyacrylic paint. Reflector in aluminium in white polyacrylic paint. Pickled sheet metal closing frame in white, black, bronze, mat brass or titanium polyacrylic paint. Stainless steel spring clips for plasterboard fixing.
Galvanised housing accessory for installation into solid walls.
Requires remote power supply, not included.
Worth Noting
- Soft to medium integral LED light source (similar brightness to standard GU10 LED lamps)
- Dimmable with a dimmable power supply (not included)
- Need to consider if it will fit in with the ceiling joists
- Fits with spring clips (easy)
- MAXIMUM PLASTERBOARD DEPTH: 25mm (1")
- REQUIRES 24V DC POWER SUPPLY, NOT INCLUDED

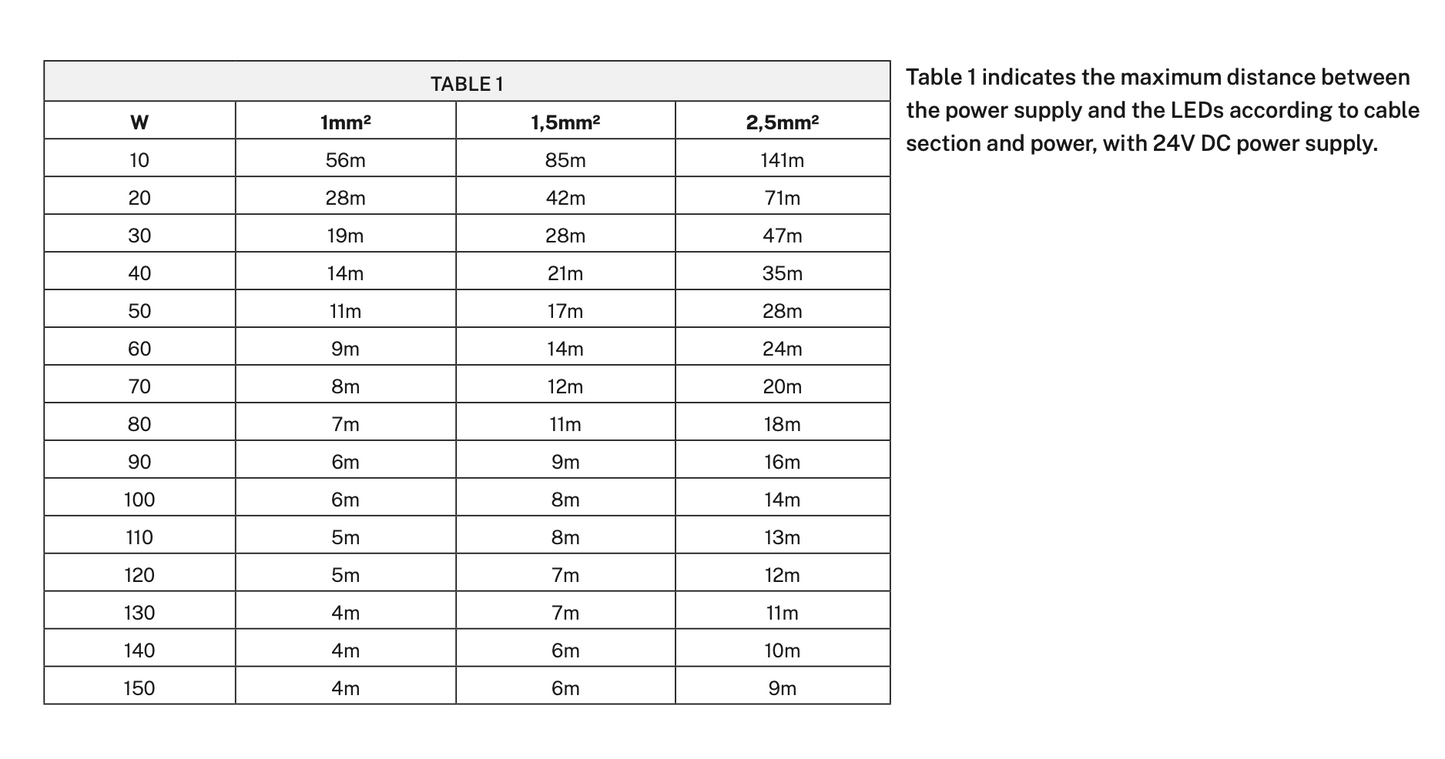

- A single power supply can run multiple units, pls see chart for wattage, cable and max distance runs
- Recommend DALI/Push Dimmable power supplies - non-dimmable options upon request

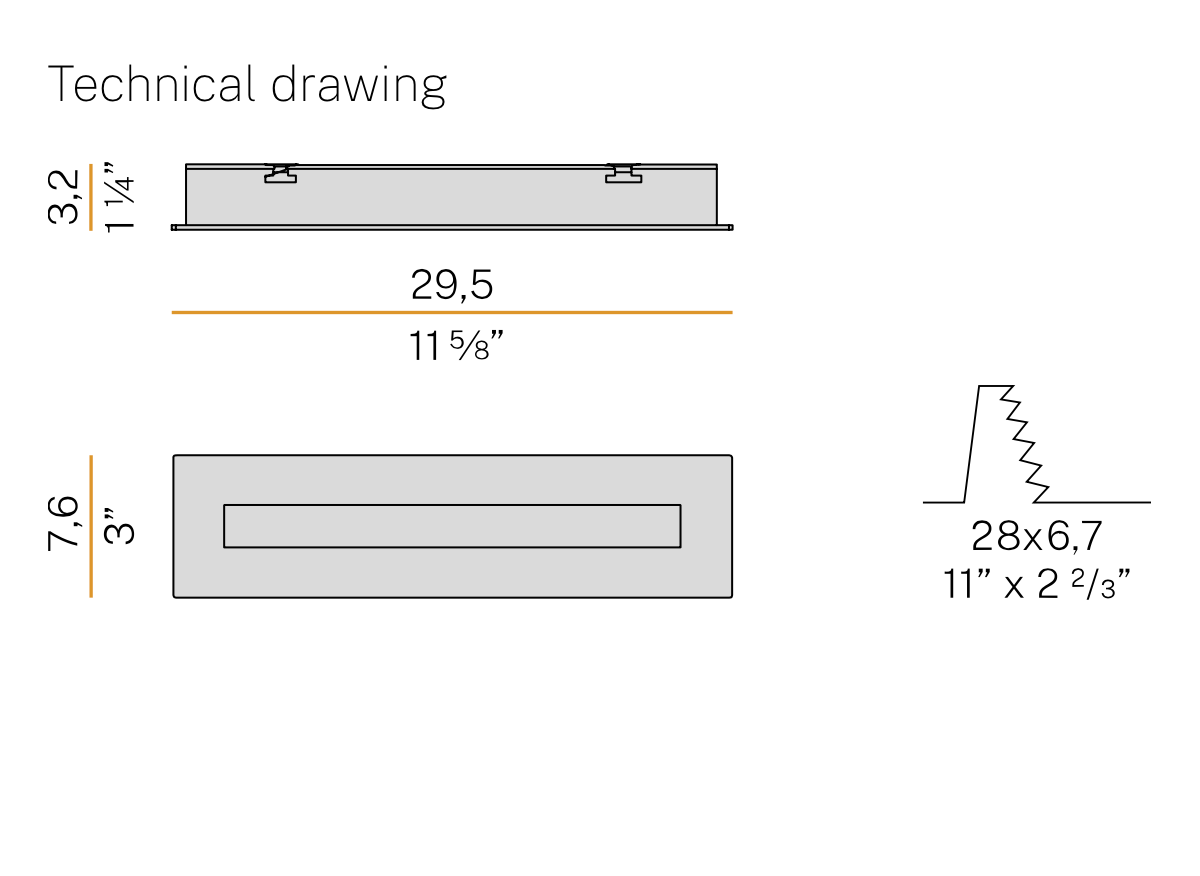

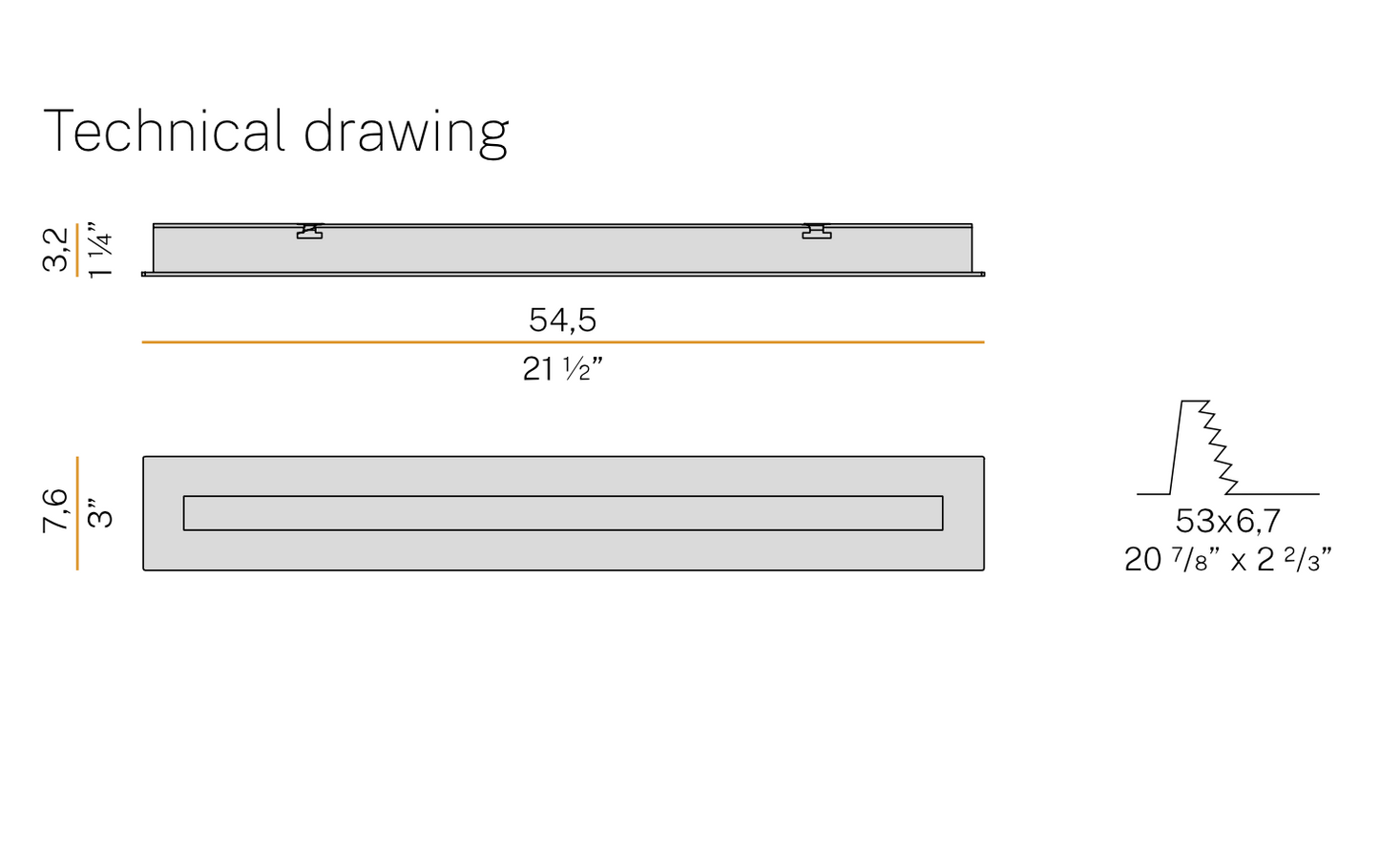

Dimensions
- Small:
- 29.5 cm L x 7.6 W x 3.2 H
- Cut Out: 6.7 cm W x 28 L

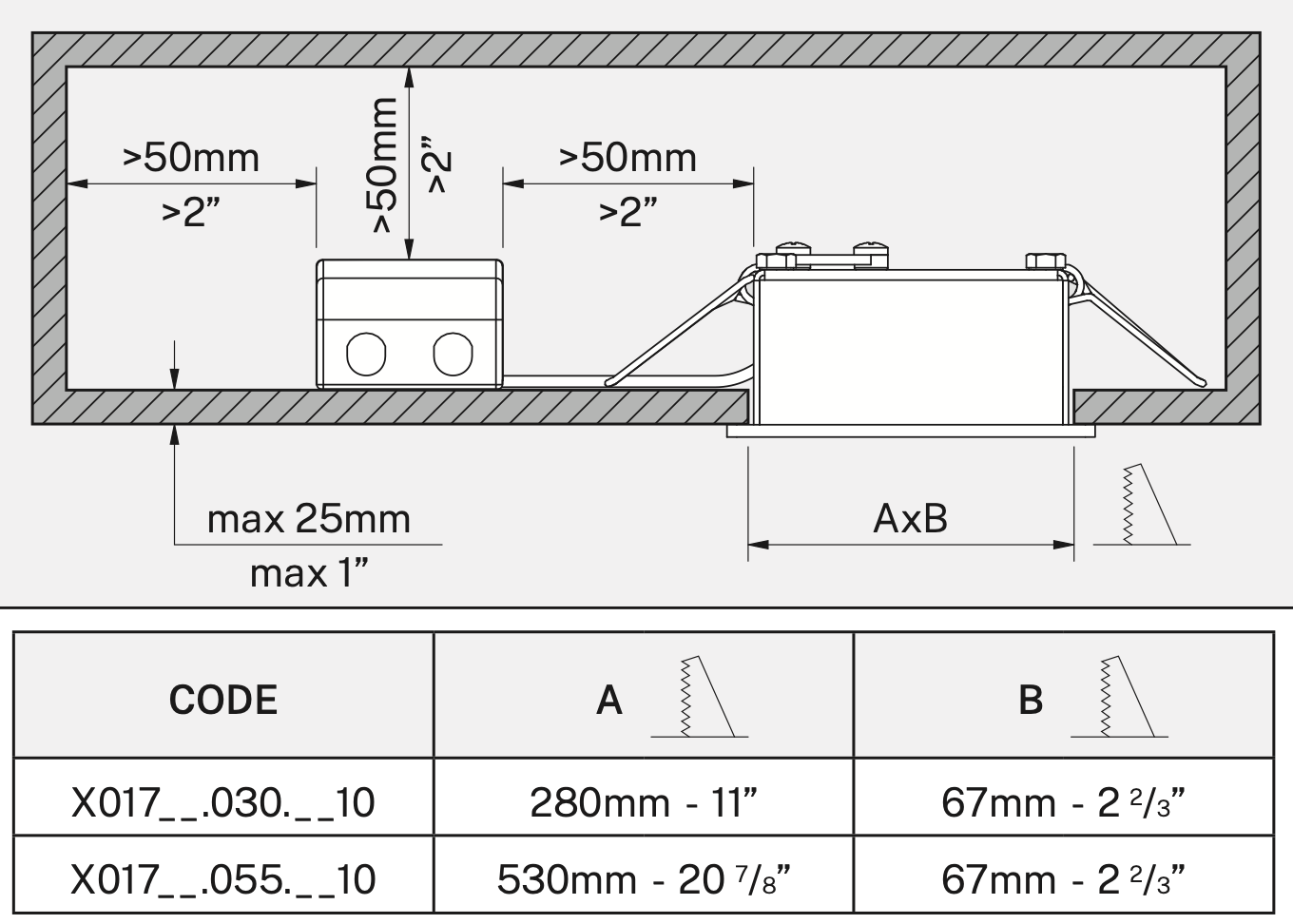

- Minimum distance to remote power supply: 5 cm
- Large:
- 54.5 cm L x 7.6 W x 3.2 H
- Cut Out: 6.7 cm W x 53 L
- Minimum distance to remote power supply: 5 cm
IP Rating
- IP20
Lamping
- LED
- 3000K
- Small:
- 8.5W
- 362 Lumens
- Large:
- 17W
- 723 Lumens

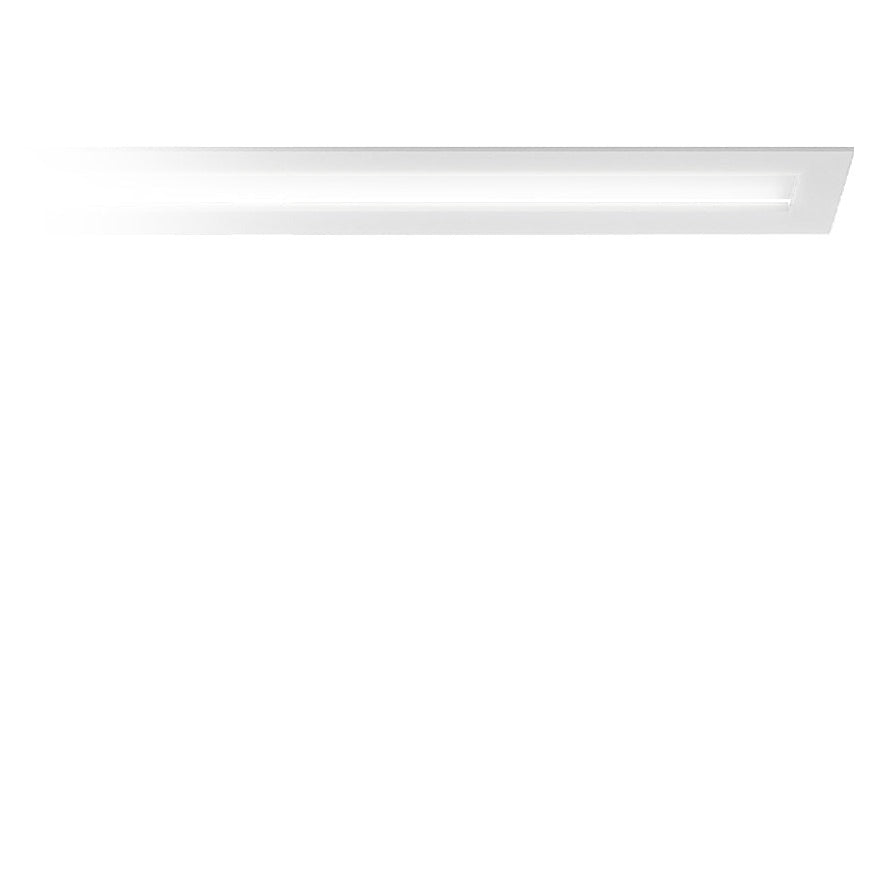

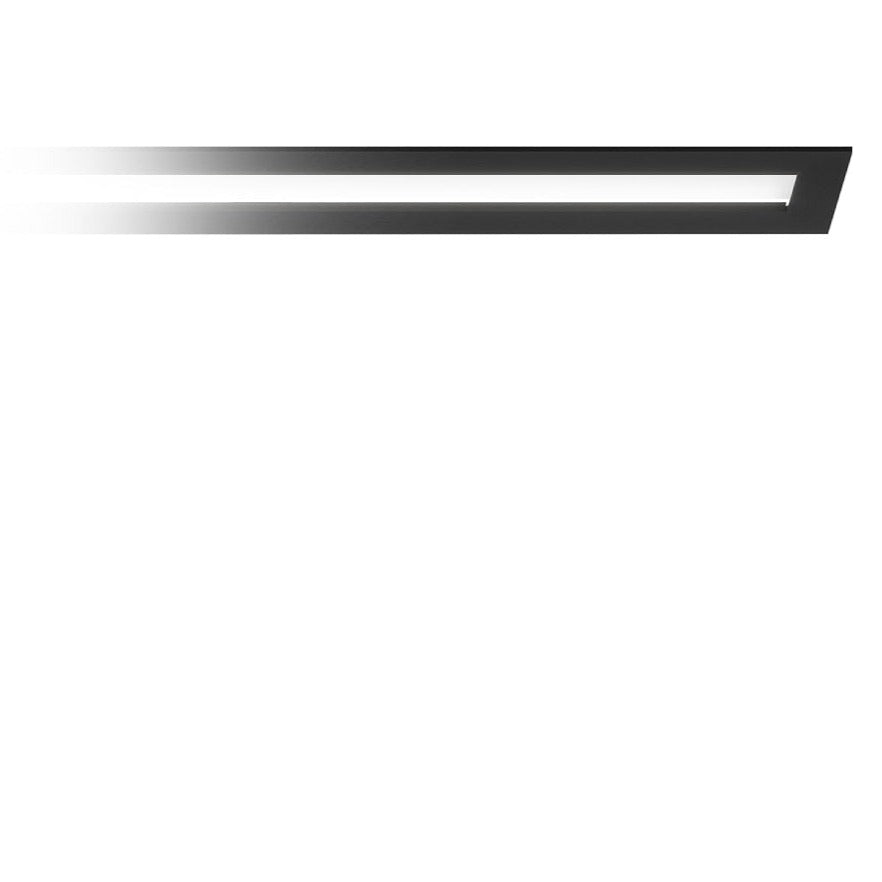

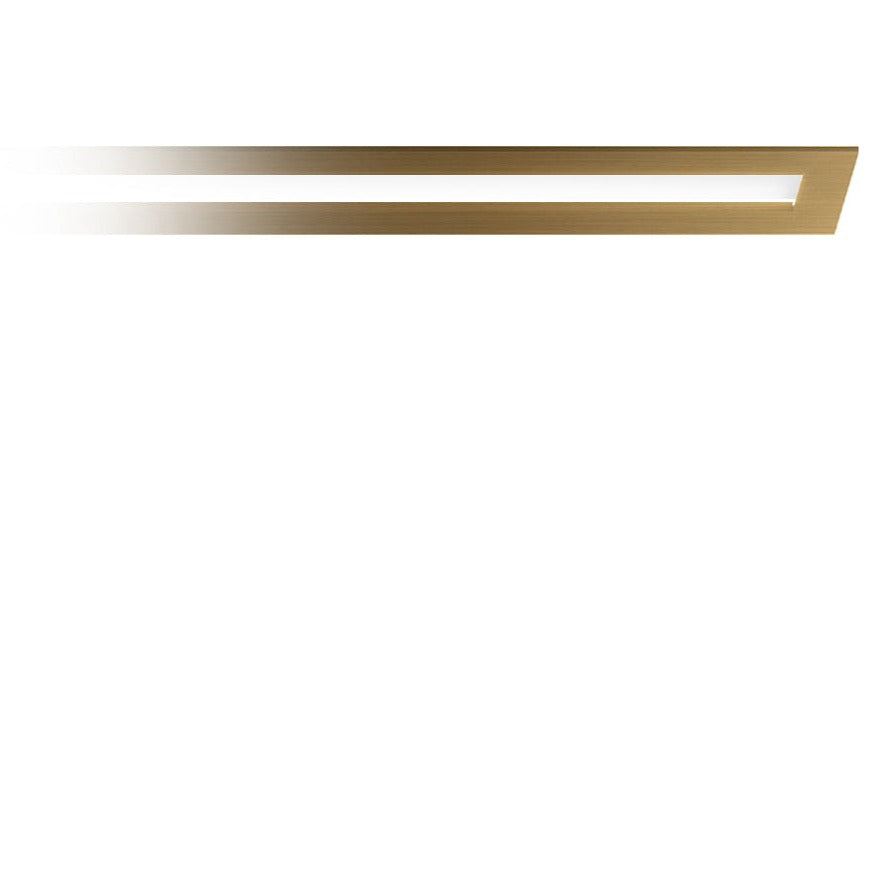

Finishes
- White

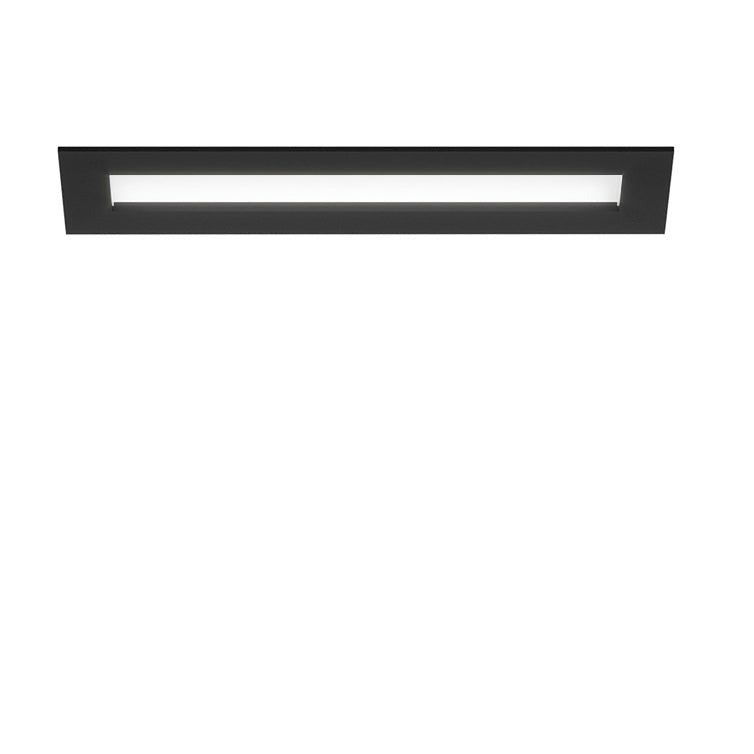

- Black

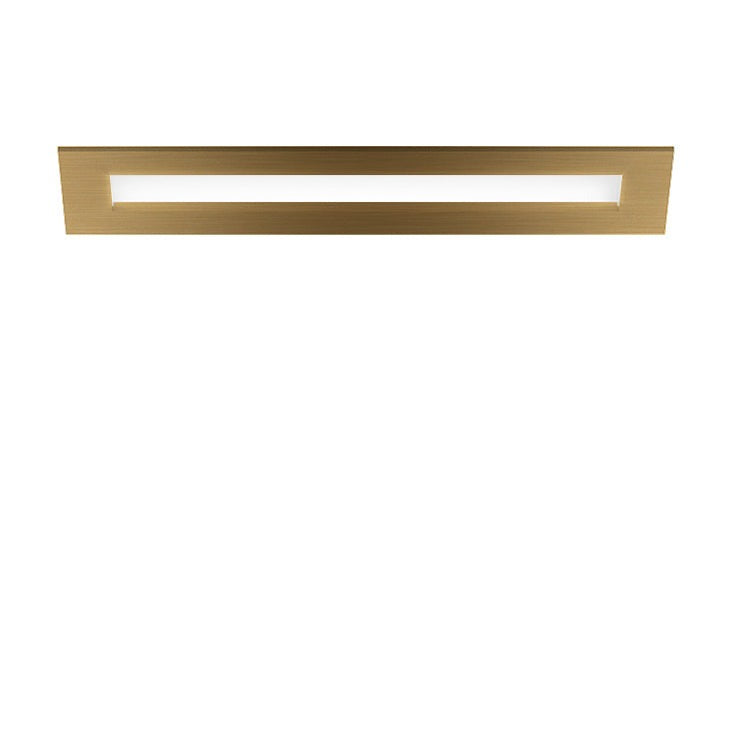

- Bronze

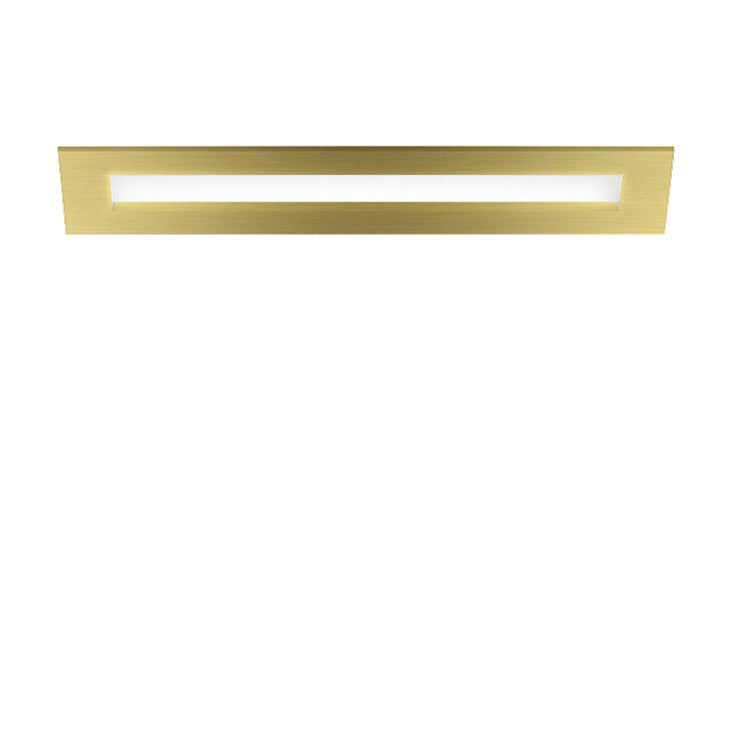

- Matte Brass

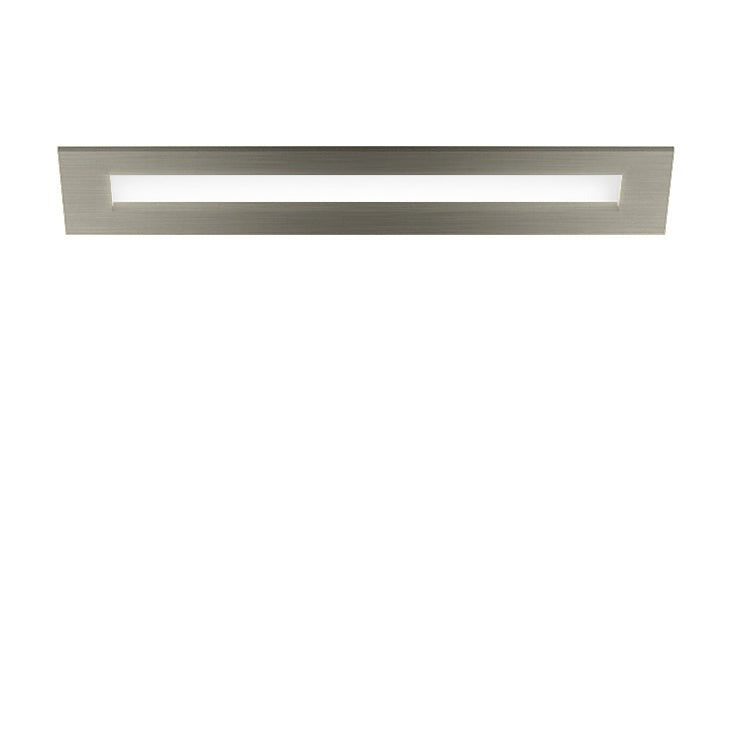

- Titanium
Control
- Depends on the Power Supply - (recommend 24V DC DALI/Push Dim
