Dodot Adjustable Ceiling or Wall Spot Light, White, LED, Phase Dim, IP20
Dodot Adjustable Ceiling or Wall Spot Light, White, LED, Phase Dim, IP20
What’s so special about this light …
Compact and performing, DoDot is made out of two small hemispheres that can be oriented by +/- 46 ° and is characterised by technical excellence in terms of power and light quality.
The luminous flux is around 2 thousand lumens and is dimmable. The light beam, emitted by the 17.6 W LED source, can be oriented by an aluminium reflector (for an opening angle of 15 °) or by a glass lens (for an opening angle of 48 °) depending on the needs of the end customer.
Available in 5 colours: white, black, mauve powder - *blue, *green cement - *limited availability.
DoDot is a product entirely made in Italy.
“Dodot is an iconic light form created to be seen in architecture for its colour yet disappear for its geometry. A perfect harmony of form and function that really shines in the world of design for its lighting performance and incredible adjustability.”
_ Simone Micheli, designer of DoDot
Worth Noting

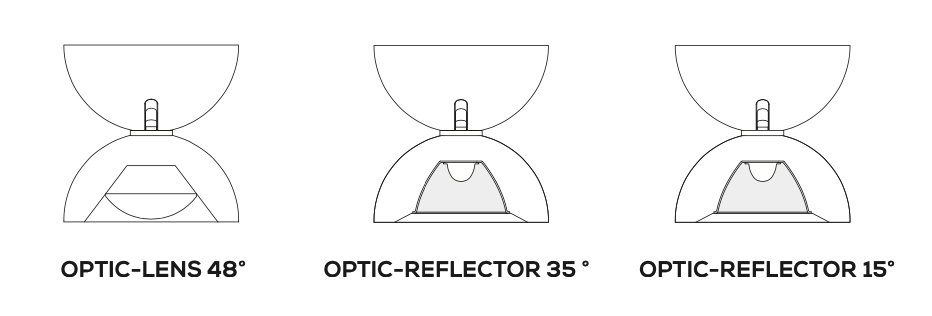

- Three beam spreads: 48º (frosted glass lens); 35º & 15º with optic reflector
- The 48º beam spread has a frosted glass cover, the other two beam angles have an open, optic reflector and visible LED light source
- The 48º frosted lens version is more expensive than the optic reflectors
- The body is metal made of aluminium and steel
- The head adjusts 46º both ways
- Decide which way you want the head to move at installation
- I believe it can be rotated 359º at installation but I don't think you can swivel it after it is installed without using an allen key (TBC)
- DO NOT ADJUST HEAD JUST BY HOLDING THE OUTSIDE OF THE SHADE - YOU NEED TO PINCH THE INSIDE AND OUTSIDE OF THE SHADE TO MOVE IT, see diagram
- Surface mounted, no recessed bits required
- LED
- 2700K or 3000K
- Lumens based on 3000K
- Phase Dim (simple dimming)
- Casambi Compatible
Dimensions
- 12.4 cm ø x 12.7 H
Weight
- 0,9 kg
IP Rating
- IP20
Lamping
- LED, Integral
- 2700K or 3000K
- 17.4W
- 2100 Lumens
- Phase Dim (simple dimming)
- 220/240Vac
Finish:
- White Finished Metal Body
- Diffuser depends on the beam spread:
- 48º = Frosted White Glass Lens
- 25º & 15º = Optic Reflector
Control
- Dimmable via Phase Dim (simple dimming) - Casambi Compatible
