Dodot Adjustable Ceiling or Wall Spot Light, Black, LED, Phase Dim, IP20
Dodot Adjustable Ceiling or Wall Spot Light, Black, LED, Phase Dim, IP20
Couldn't load pickup availability
What’s so special about this light …
Compact and performing, DoDot is made out of two small hemispheres that can be oriented by +/- 46 ° and is characterised by technical excellence in terms of power and light quality.
The luminous flux is around 2 thousand lumens and is dimmable. The light beam, emitted by the 17.6 W LED source, can be oriented by an aluminium reflector (for an opening angle of 15 °) or by a glass lens (for an opening angle of 48 °) depending on the needs of the end customer.
Available in 5 colours: white, black, mauve powder - *blue, *green cement - *limited availability.
DoDot is a product entirely made in Italy.
“Dodot is an iconic light form created to be seen in architecture for its colour yet disappear for its geometry. A perfect harmony of form and function that really shines in the world of design for its lighting performance and incredible adjustability.”
_ Simone Micheli, designer of DoDot
Worth Noting

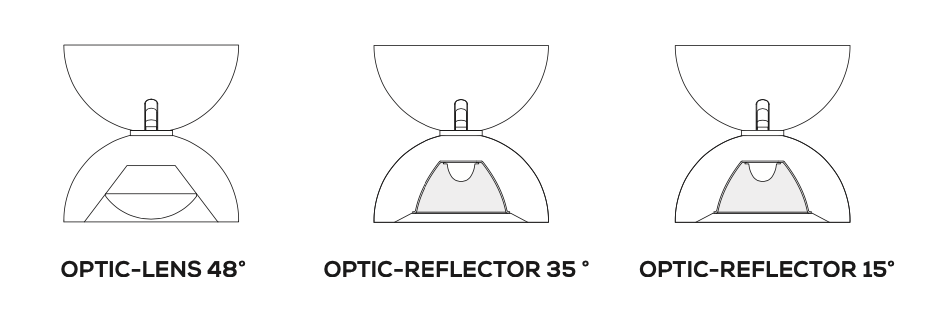

- Three beam spreads: 48º (frosted glass lens); 35º & 15º with optic reflector
- The 48º beam spread has a frosted glass cover, the other two beam angles have an open, optic reflector and visible LED light source
- The 48º frosted lens version is more expensive than the optic reflectors
- The body is metal made of aluminium and steel

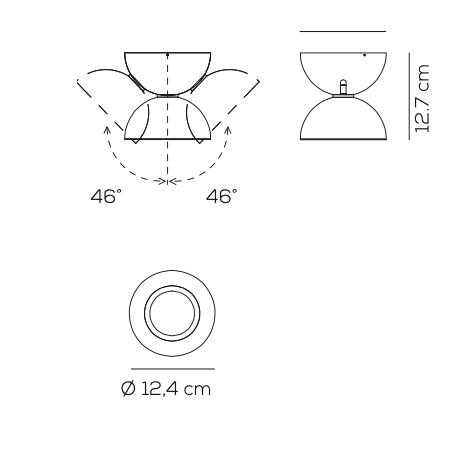

- The head adjusts 46º both ways
- Decide which way you want the head to move at installation
- I believe it can be rotated 359º at installation but I don't think you can swivel it after it is installed without using an allen key (TBC)

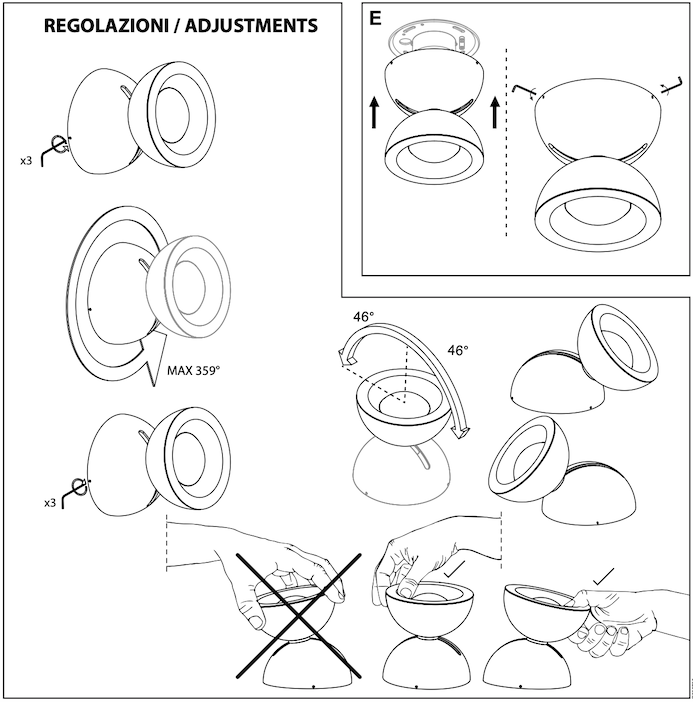

- DO NOT ADJUST HEAD JUST BY HOLDING THE OUTSIDE OF THE SHADE - YOU NEED TO PINCH THE INSIDE AND OUTSIDE OF THE SHADE TO MOVE IT, see diagram
- Surface mounted, no recessed bits required
- LED
- 2700K or 3000K
- Lumens based on 3000K
- Phase Dim (simple dimming)
- Casambi Compatible
Dimensions

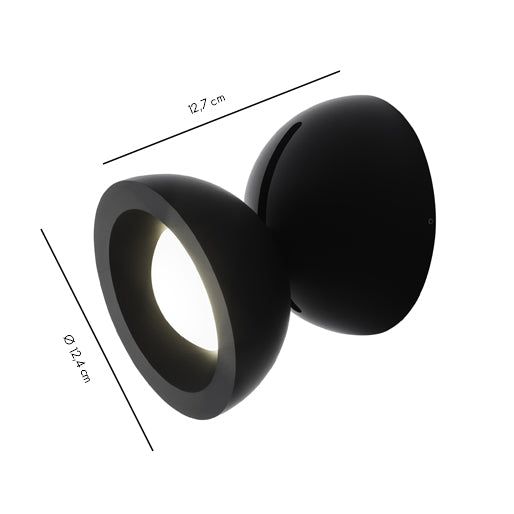

- 12.4 cm ø x 12.7 H
Weight
- 0,9 kg
IP Rating
- IP20
Lamping
- LED, Integral
- 2700K or 3000K
- 17.4W
- 2100 Lumens
- Phase Dim (simple dimming)
- 220/240Vac
Finish:
- Black Finished Metal Body
- Diffuser depends on the beam spread:

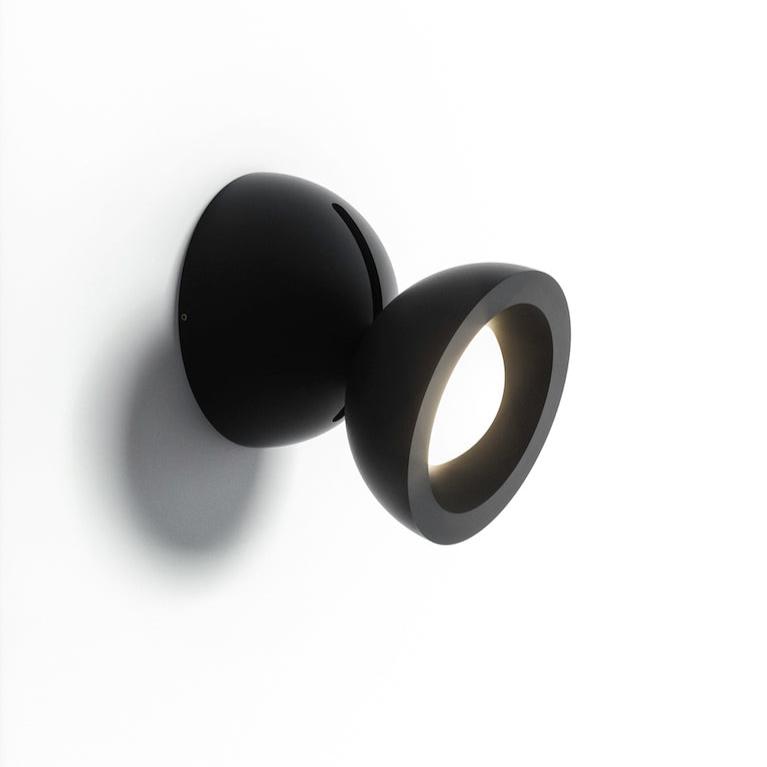

- 48º = Frosted White Glass Lens
- 25º & 15º = Optic Reflector
Control
- Dimmable via Phase Dim (simple dimming) - Casambi Compatible
