Luceplan

Compendium Ceiling, Black, LED, 39W, Phase Dim, IP40

Compendium Ceiling, Black, LED, 39W, Phase Dim, IP40

Regular price £1,065.60 GBP
Regular price Sale price £1,065.60 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Mounting type
Kelvin

What’s so special about this light …

This flush ceiling light is minimal, stylish, and a very powerful source of light with even illumination thanks to the LED panel behind the diffuser. In spite of its extremely slender design, Compendium Plate provides extraordinary lighting efficiency combined with a clean form and extreme elegance. The external profile in anodised extruded aluminium (available in 4 finishes) conserves the slim original thickness, creating a surface almost flush with the wall or ceiling. Easy dimming. Choice of 2700K or 3000K. Choice of surface mounted or opt for the remote power supply version for a completely flush effect, price varies.

Worth Noting

  • Available in 1 size
  • Available with a choice of 2700K or 3000K
  • Available with a choice of surface mounted or with recessed remote power supply (price varies)
  • The remote power supply is 60W
  • There are not images of all recessed vs surface mounted versions in each finish, please use avail images for references
  • The remote power supply requires access
  • Components made of aluminium and injected thermoplastics
  • The diffuser (covers the light source) is made of thermoplastics
  • The body is made of aluminium in various finishes
  • The surface mounted canopy is white
  • Take care to read the instructions prior to installation
  • Do NOT touch the inside of the light when installing - use the frame only
  • Do NOT angle the cable, it must be straight from the surface into the light, no curves, no bends
  • There is a protective sheath over the LED panel that requires removing at the final steps of installation
  • Wide beam of powerful, dimmable indirect lighting
  • The light shines forwards (no glow directly onto the surface)
  • Shallow projection - less than 4" Projection
  • LED lamping
  • LED module is NOT replaceable
  • Choice of 2700K or 3000K
  • Phase Cut Dimming
  • DALI/Push Dimming upon request

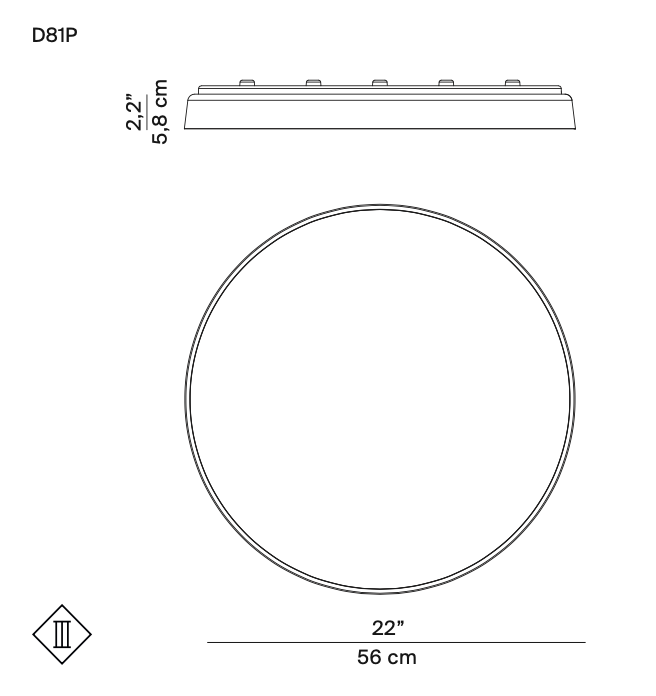

Dimensions

  • Surface: 56 cm ø x 8.8 H (includes 3 cm H surface mount plate)
  • Recessed: 56 cm ø x 5.8 cm H (requires remote power supply)

Weight

  • Surface Mount: 4.5 kg
  • Recessed: 4 kg

IP Rating

  • IP40

Lamping

  • LED
  • 39W [remote power supply is 60W]
  • 220/240v
  • 1400 mA
  • Choice of Kelvins:
    • 2700K / ? Lumens
    • 3000K / ? Lumens

Finish

  • Black Aluminium Frame
  • White Injected Thermoplastic Diffuser (for even light distribution)
  • White Mounting Canopy (if choosing surface mounted)

Control

  • Phase Cut Dimmable
    • DALI/Push Dim upon request
