What’s so special about this light …

Small round, nautical styled recessed bulkhead with diffused light. Solid brass with frosted glass diffuser. Dimmable if using a dimmable power supply. IP65.

Worth Noting

• Serial wiring
• Constant Current, 700mA
• Requires a power supply, not included
• Power supply can run multiple units – check wattage for max number of units per PS
• Power supply requires remote, accessible position
• On/Off or Dimmable – depends on the PS

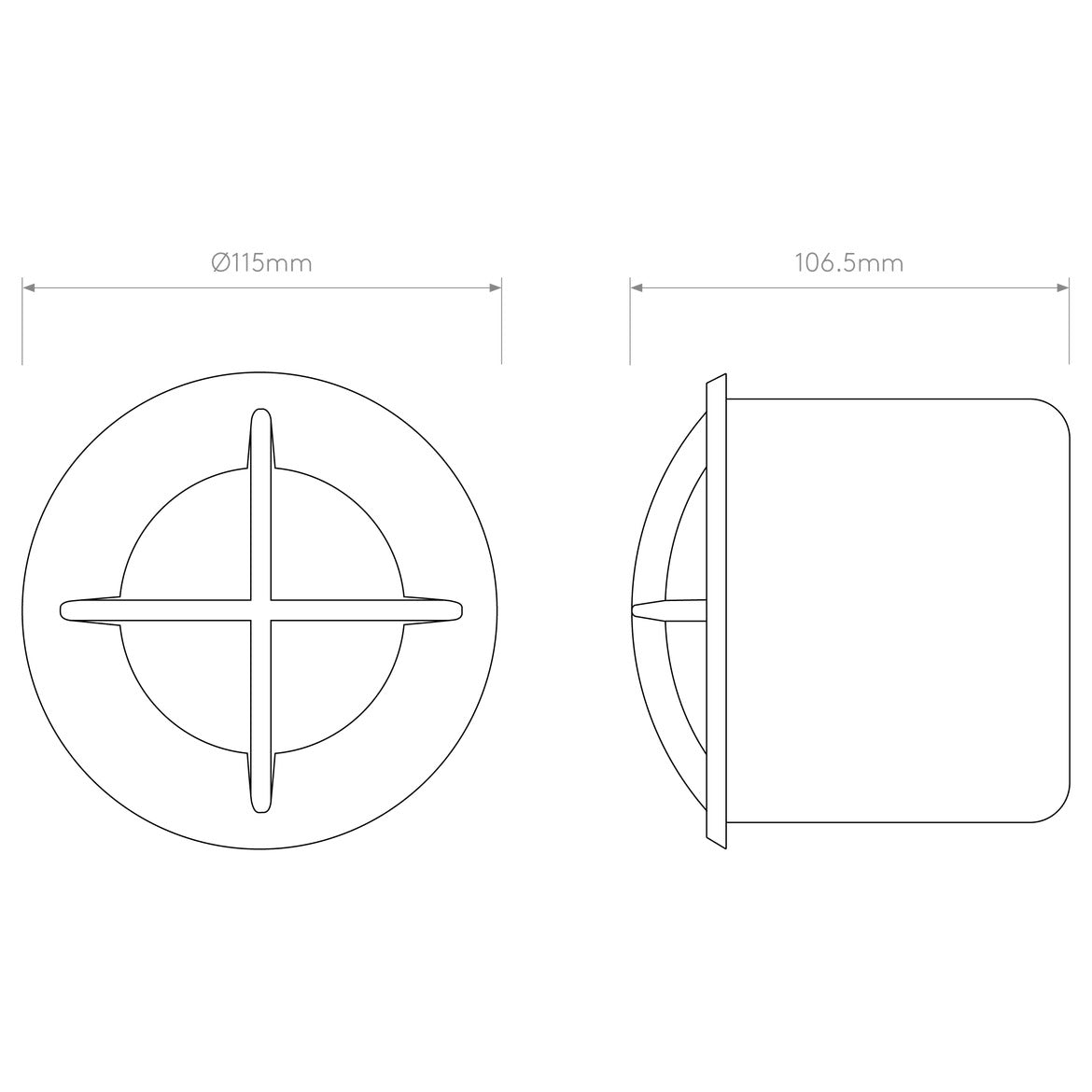

Dimensions

• 115 mm ø x 23 mm P x 106.5 mm OAL
• Recessed Depth: 83.5 mm D
  • Cut Out: 105 mm ø OR 103 mm ø (discrepancy between instructions and data sheet)

IP Rating

• IP65

Lamping

• LED
  • KELVINS: 2700K
  • LUMENS: 60 Lumens
  • WATTAGE: 2W

Finish

• Solid Brass
• Frosted Glass Diffuser

Control

• Depends on the chosen, remote, required power supply
