What’s so special about this light …

LED lamping with a medium to soft light source in 2700K and dimmable depending on the power supply, not included. The look is clean, simple and minimal. 38º beam spread. IP20.

Worth Noting

• Polycarbonate Diffuser (not glass)
• Requires a 150 mm ceiling void clearance
• Spring clips
• Not fire rated
• Optional fire hood available for purchase

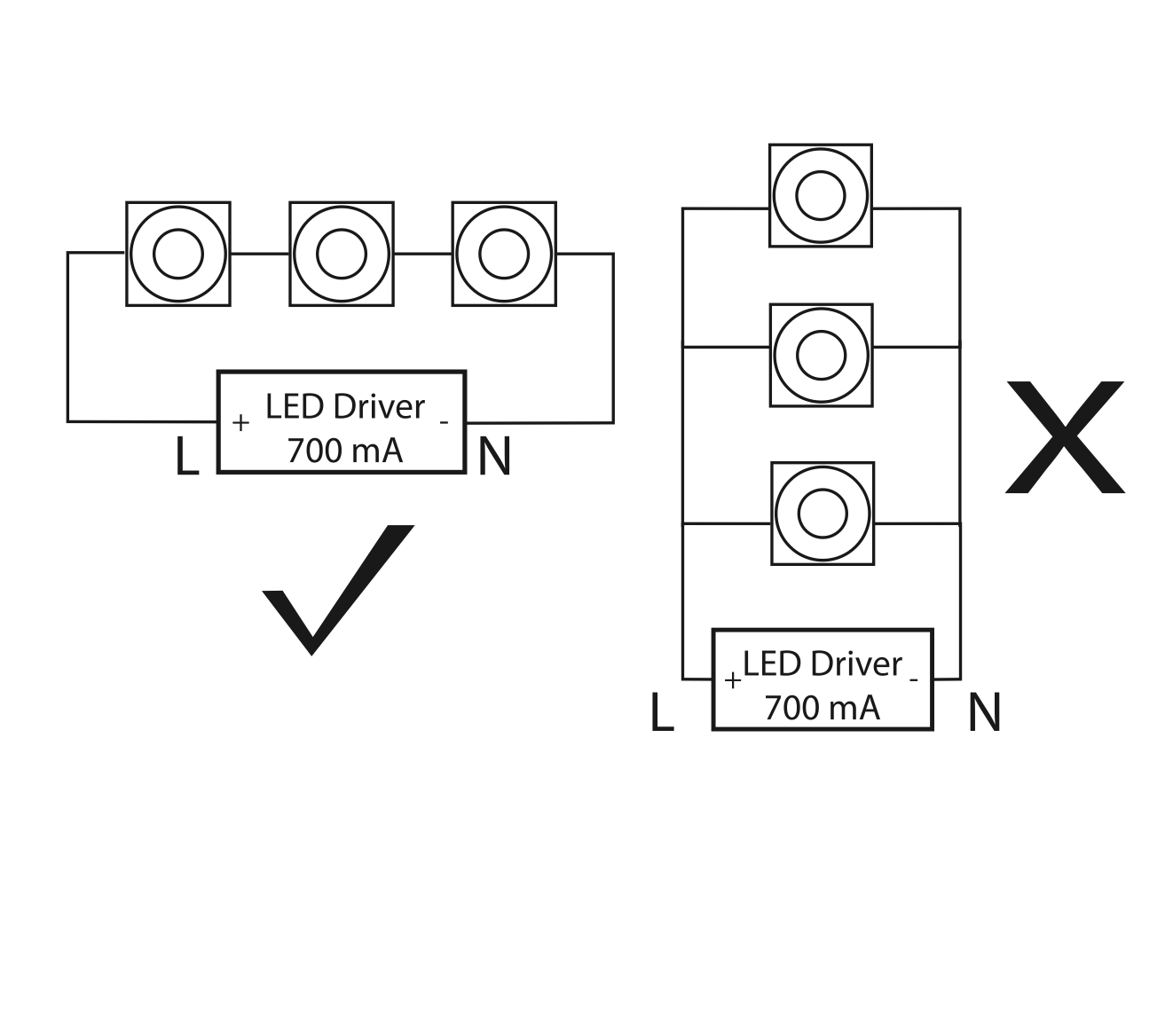

• Serial wiring
• Constant Current, 700mA
• Requires a power supply, not included
• Power supply can run multiple units – check wattage for max number of units per PS
• Power supply requires remote, accessible position
• On/Off or Dimmable – depends on the PS

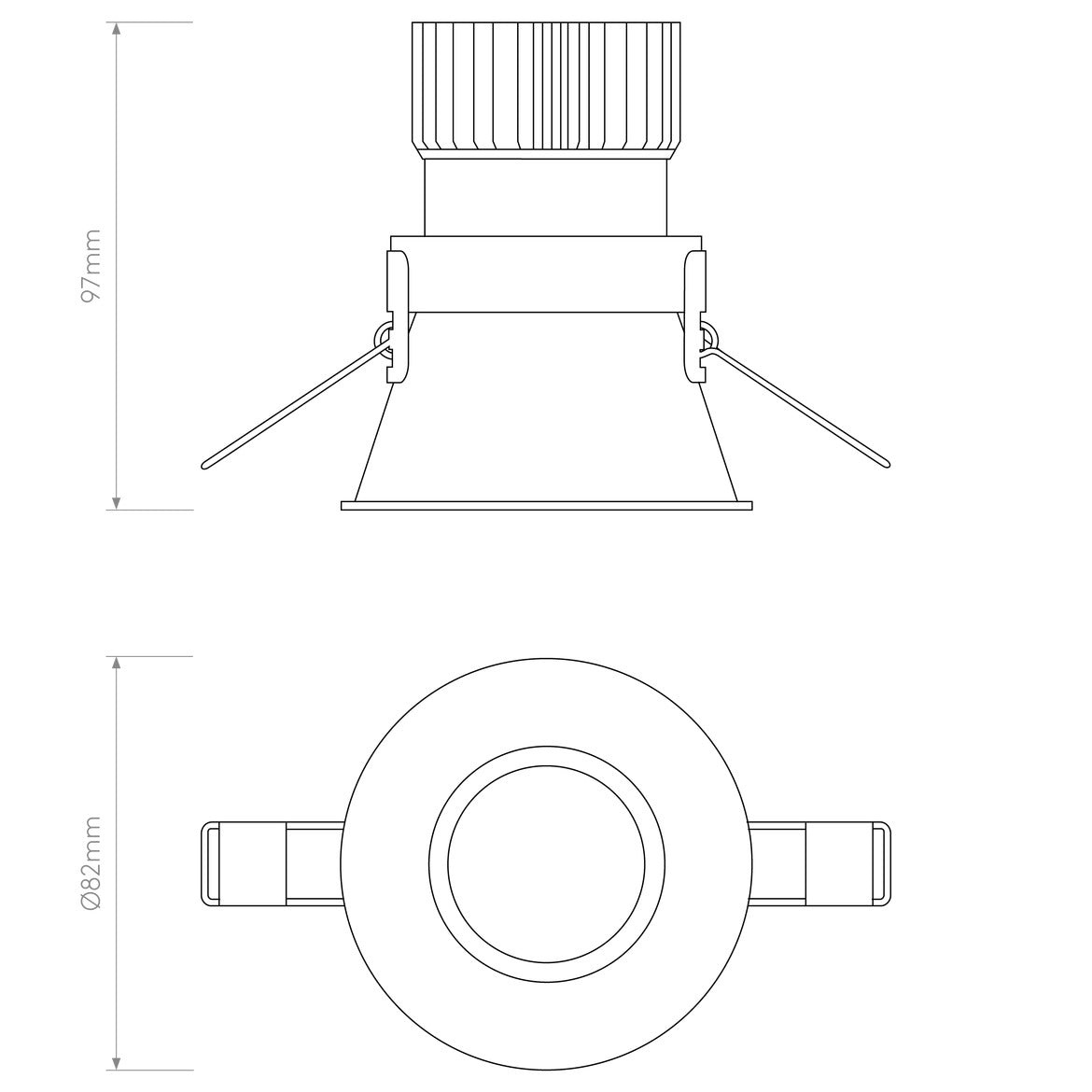

Dimensions

• 82 mm ø
• Recessed Depth: 150 mm D

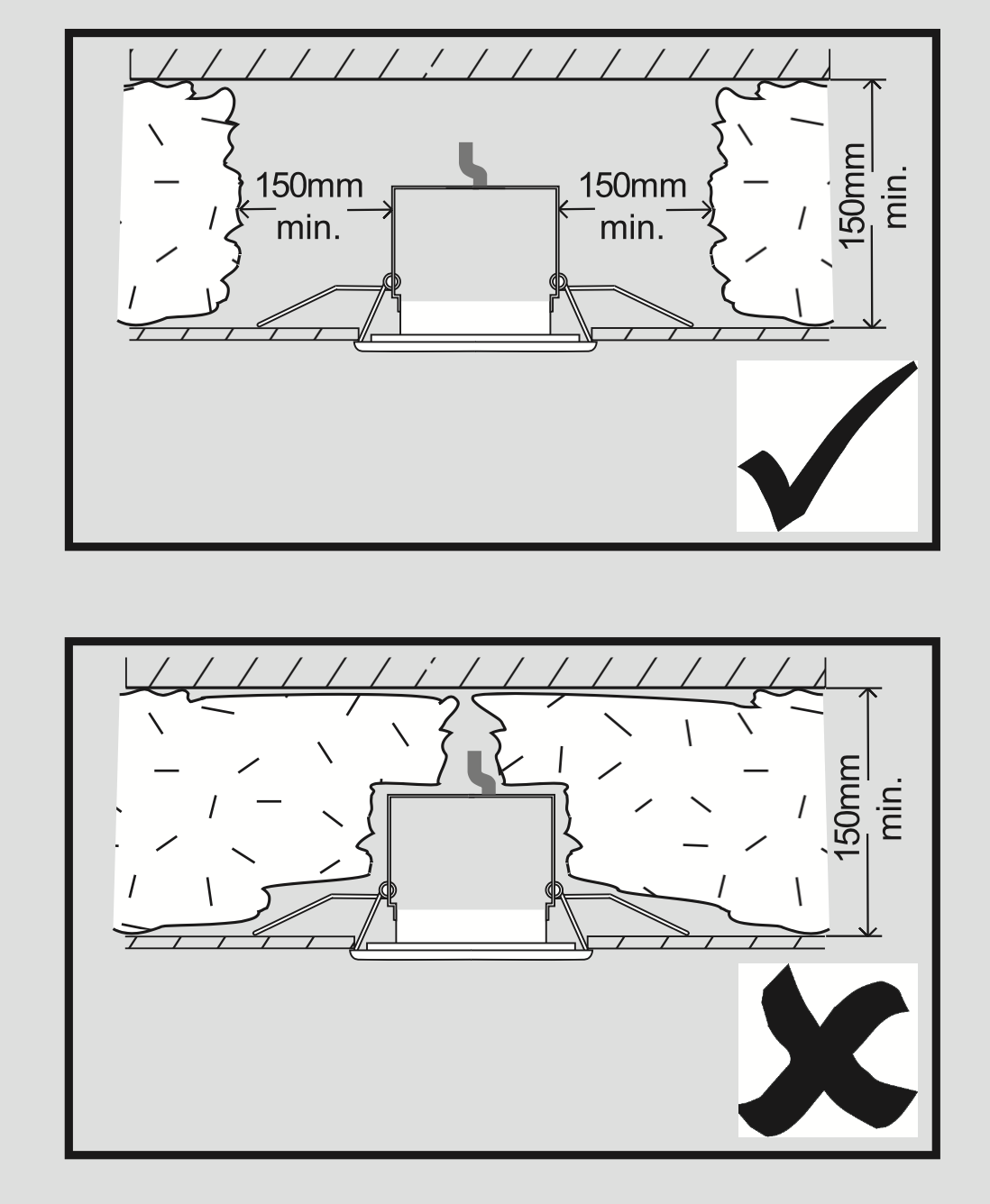

  • MINIMUM 150 mm clearance required at the top and sides
    • Cut Out: 76 mm ø OR 77 mm ø [DISCREPANCY BETWEEN DATA SHEET AND INSTRUCTIONS]

IP Rating

• IP20

Lamping

• LED
  • KELVINS: 2700K
  • LUMENS: 434 Lumens
  • WATTAGE: 6.8W
  • BEAM SPREAD: 38º

Finish

• Textured White Metal
• Clear Polycarbonate Diffuser

Control

• Depends on the chosen, remote, required power supply
