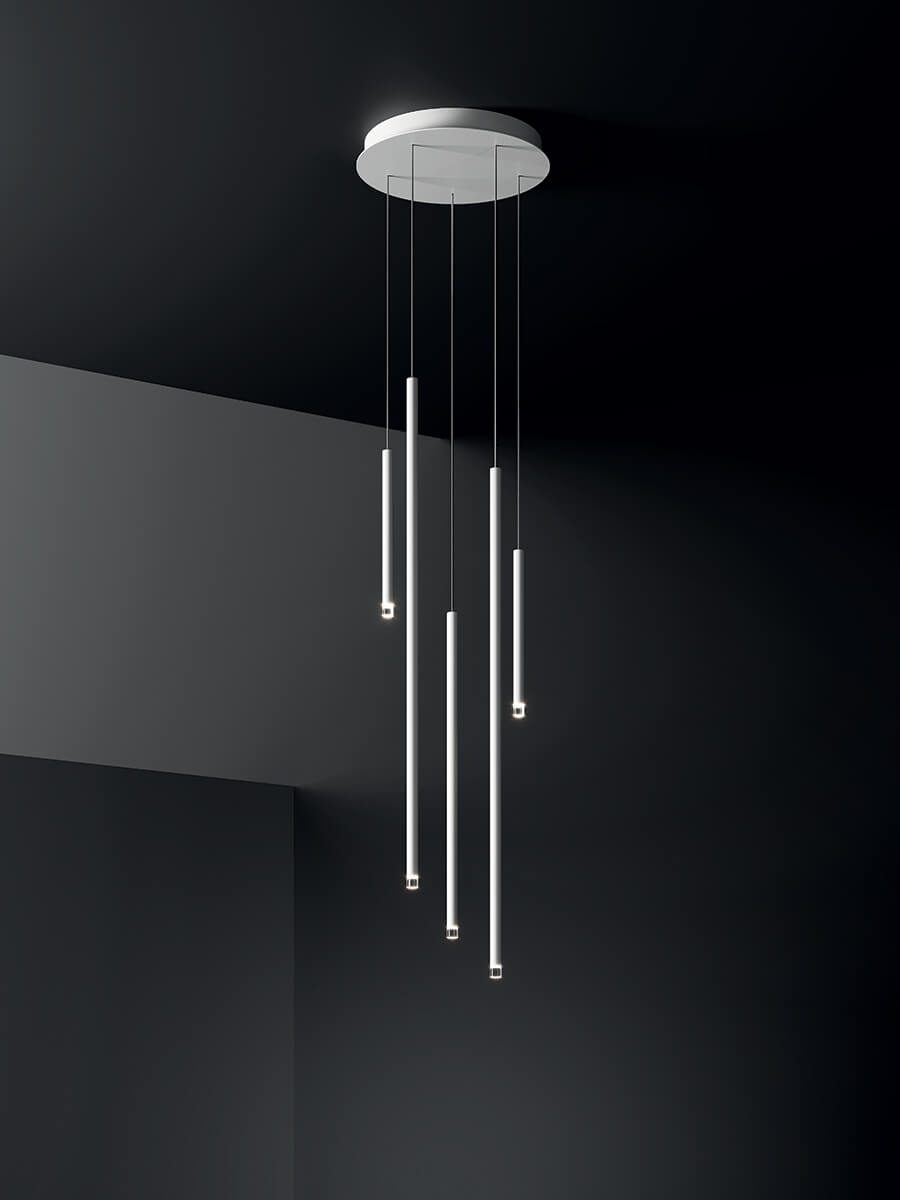

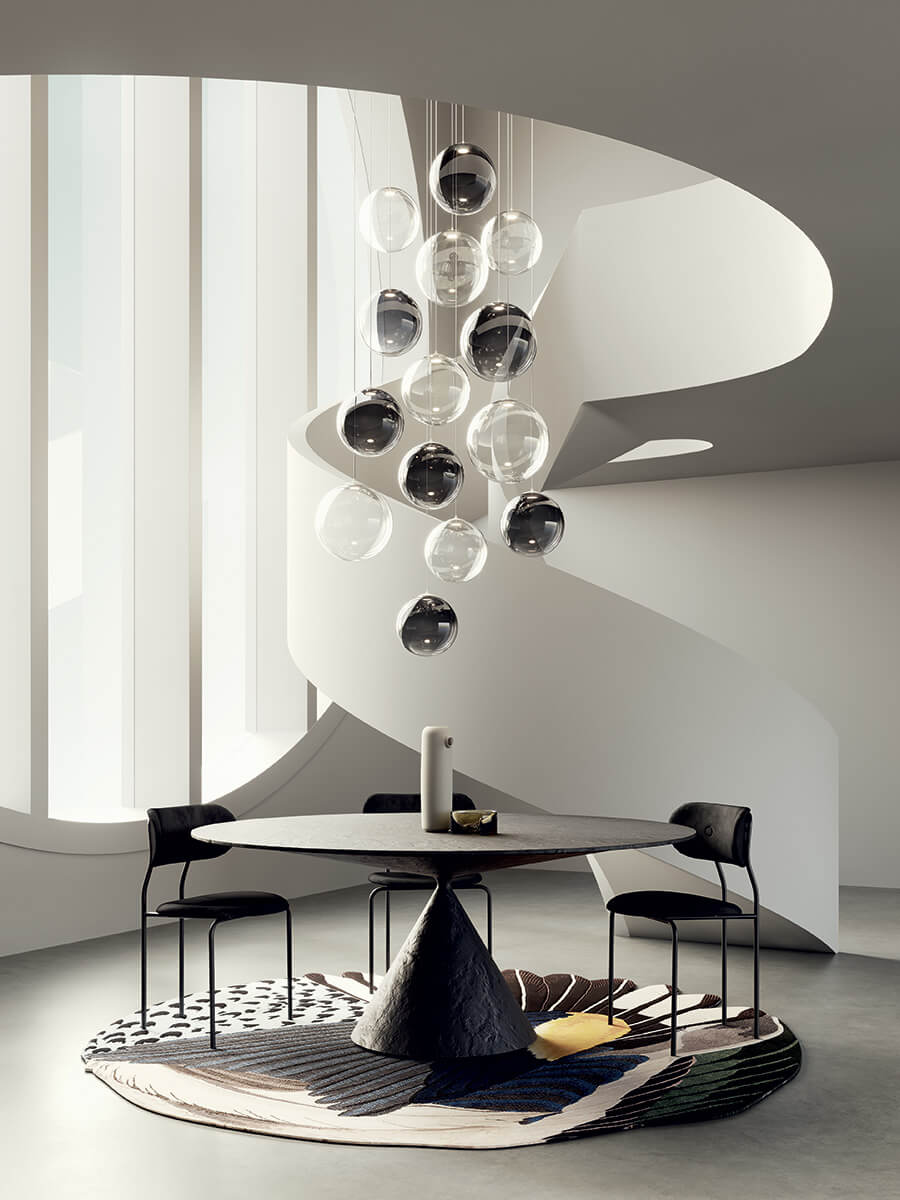

Lodes’s multiple round canopy (Round Cluster System) is a circular system for hanging suspension lights from the ceiling. It is a decorative element fitted with a variable but predefined number of holes and used to create more or less compact clusters of light fixtures based on the type of space and ceiling.
Triac Dimmable.
Dimensions:

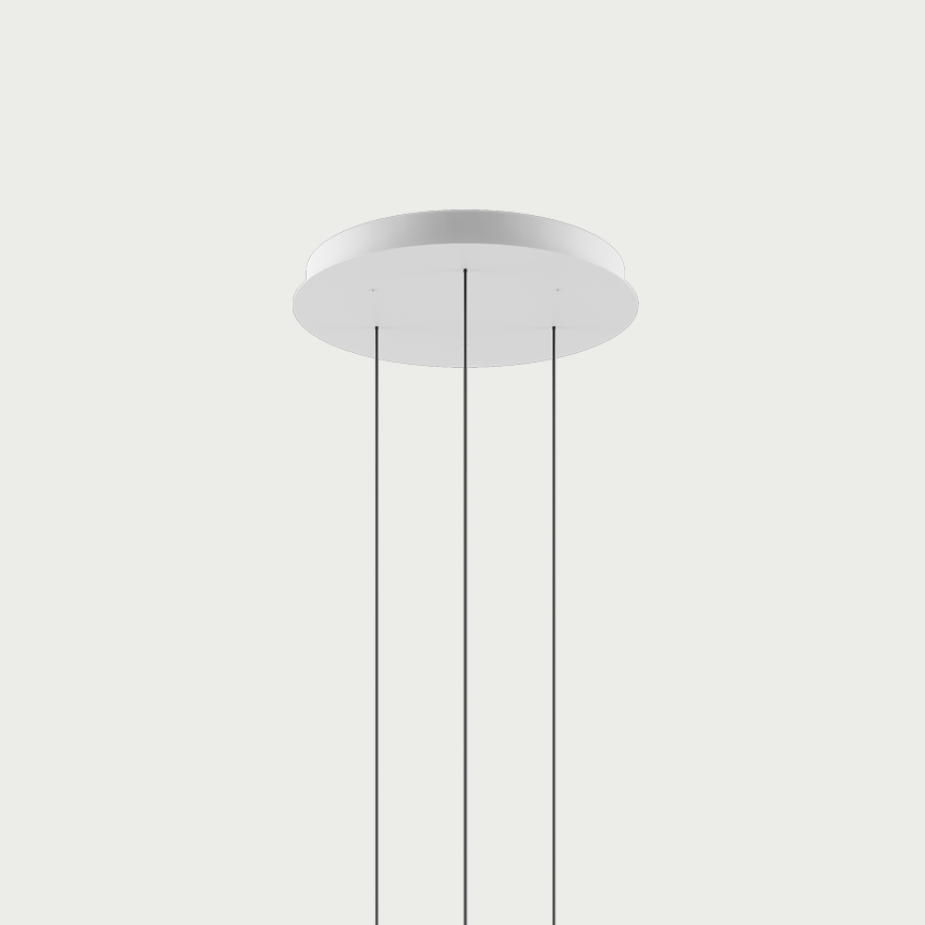

- XS [3 units] 38 cm ø x 4.2 cm H
- Small [5 units] 38 cm ø x 4.2 cm H

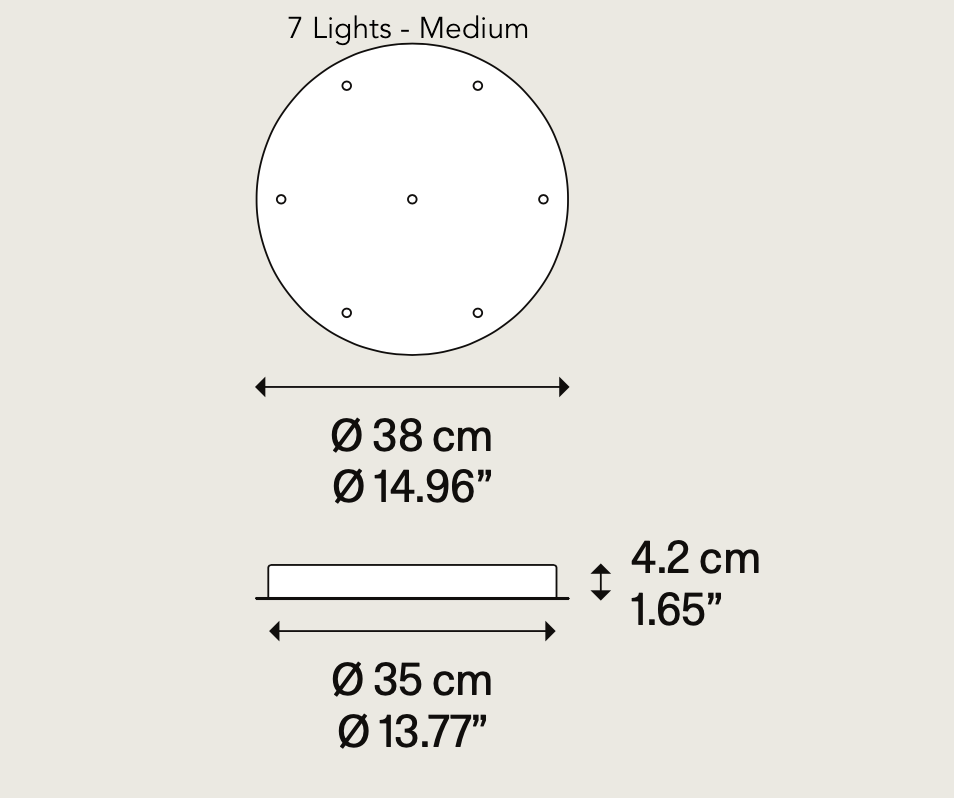

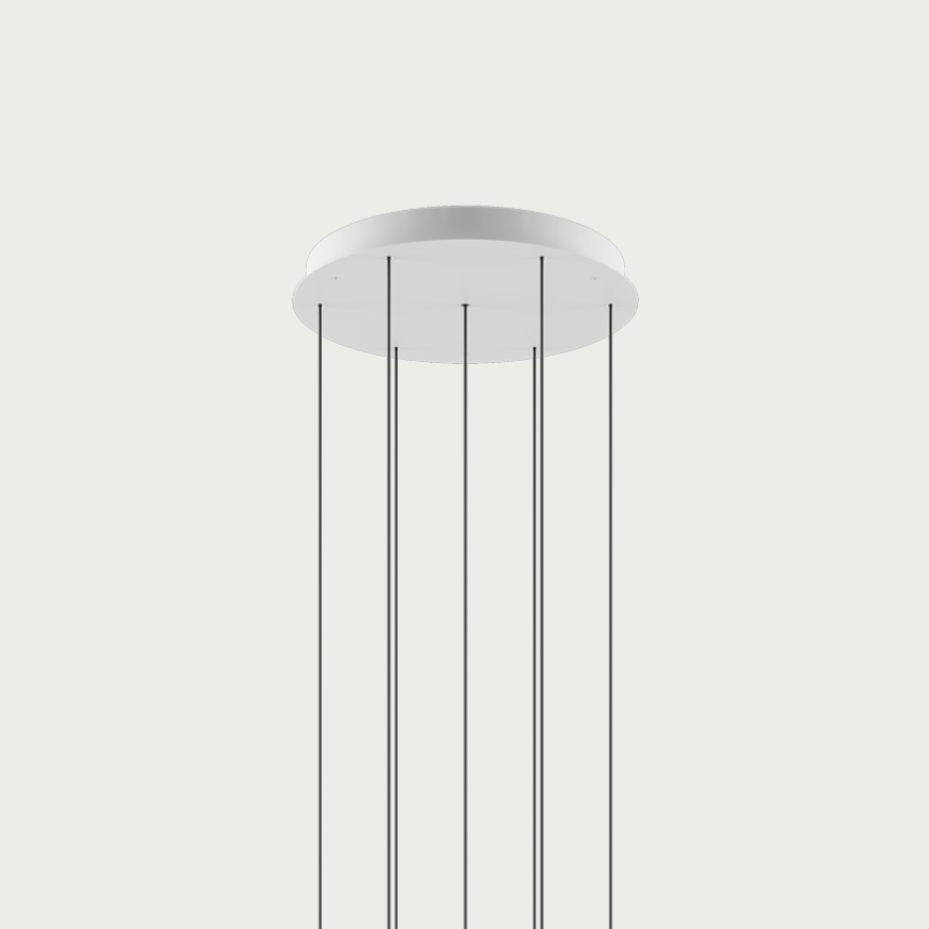

- Medium [7 units] 38 cm ø x 4.2 cm H

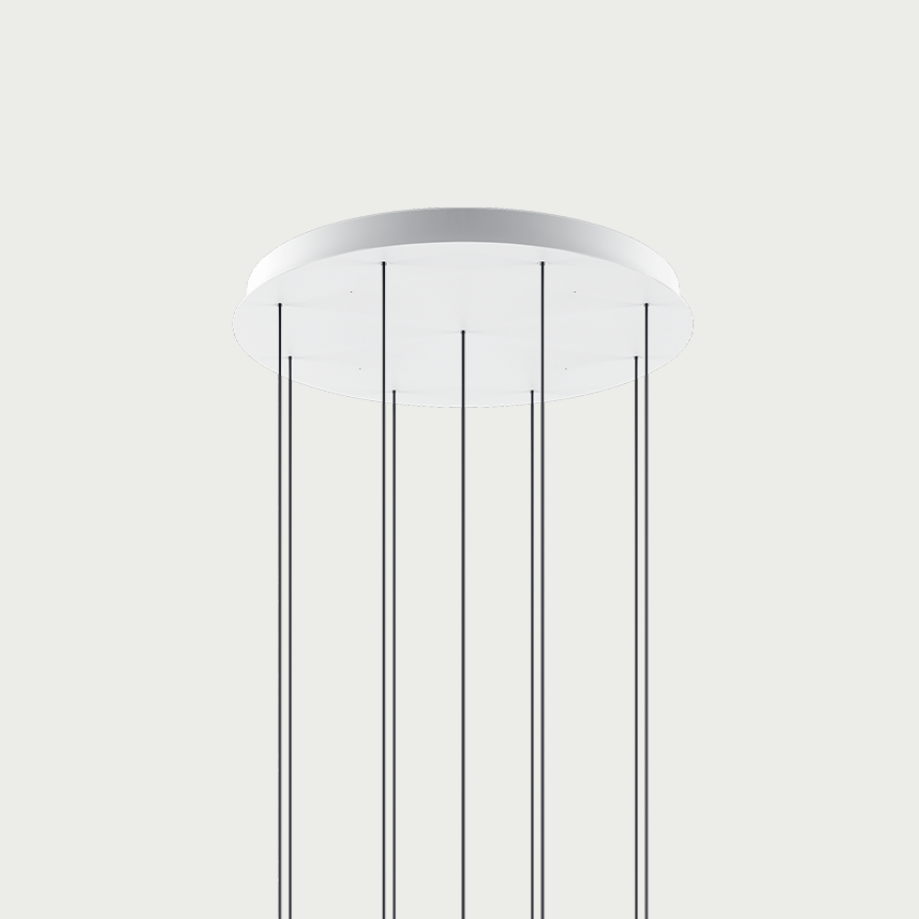

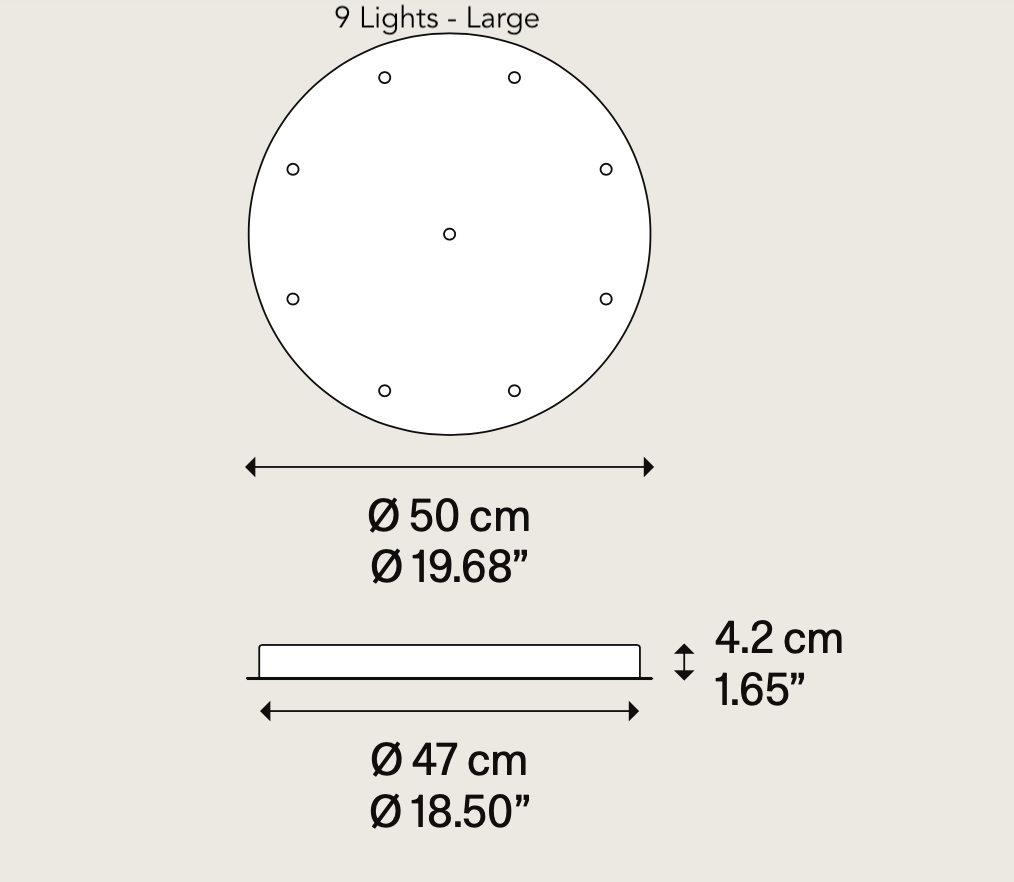

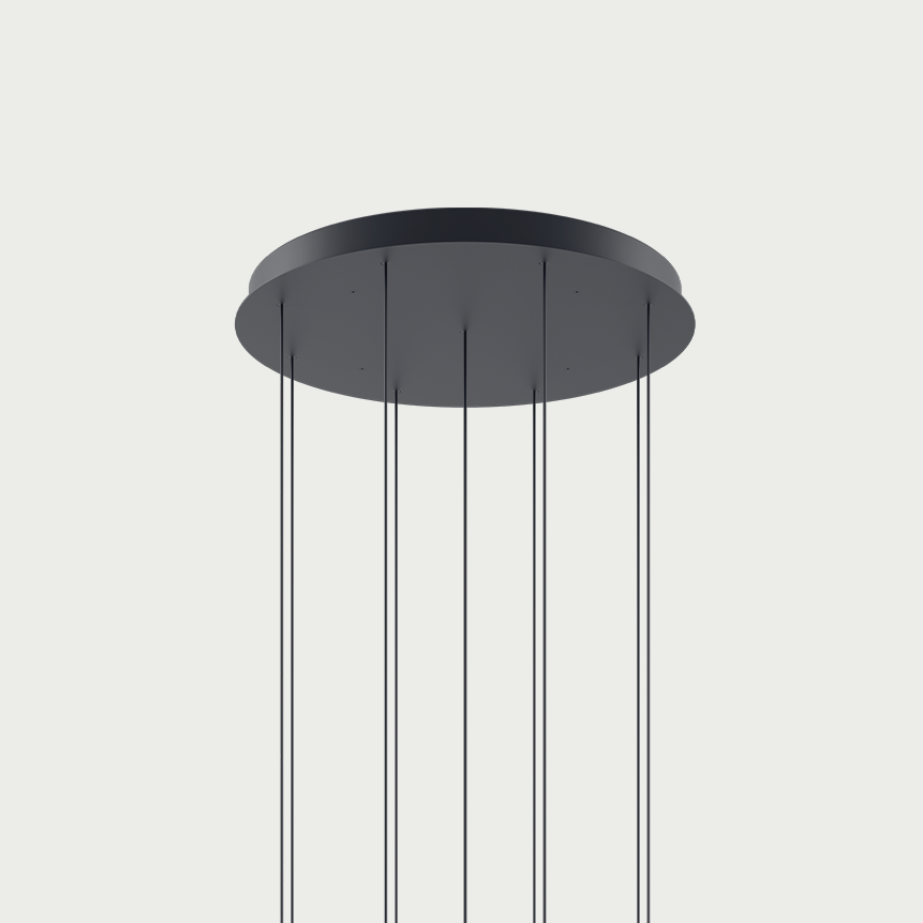

- Large [9 units] 50 cm ø x 4.2 cm H

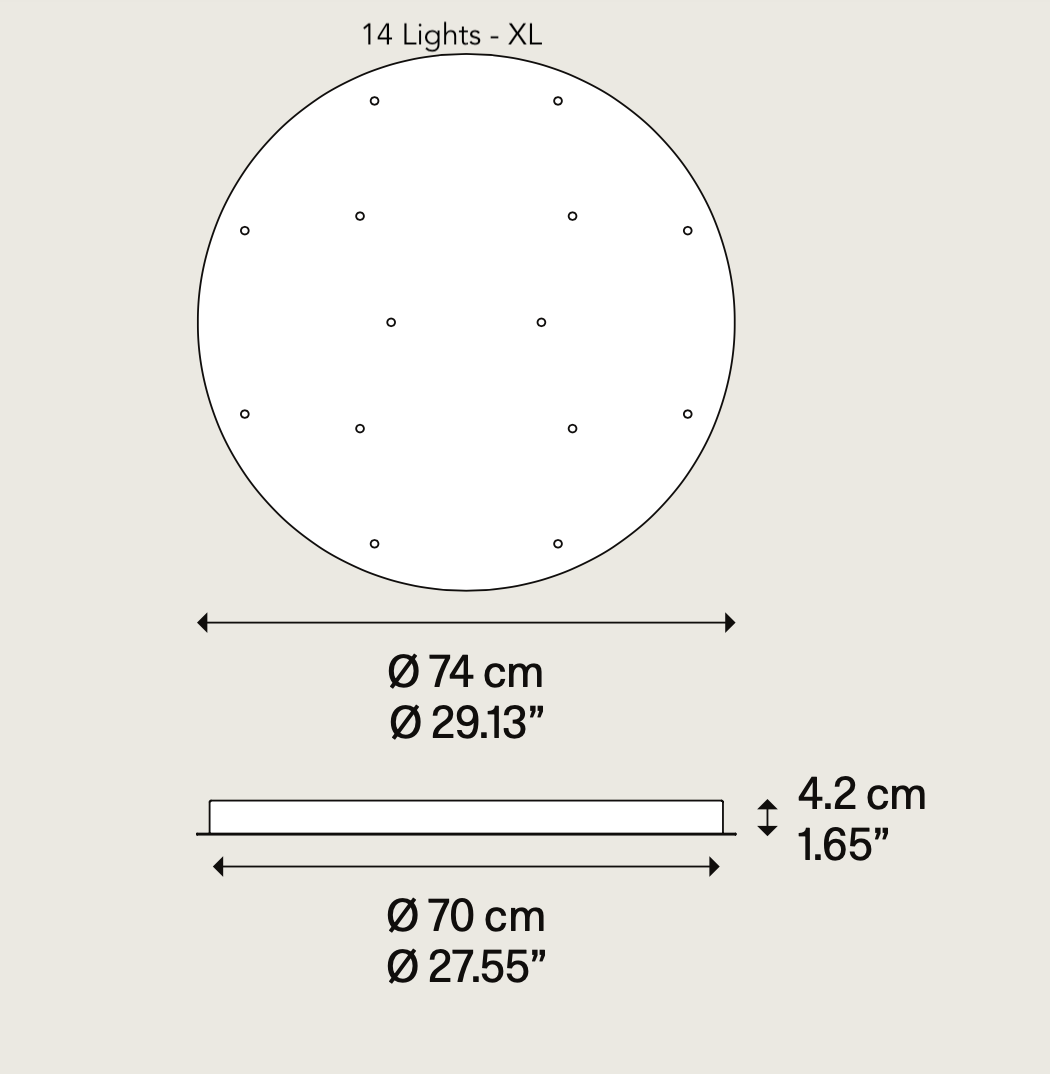

- XL [14 units] 74 cm ø x 4.2 cm H

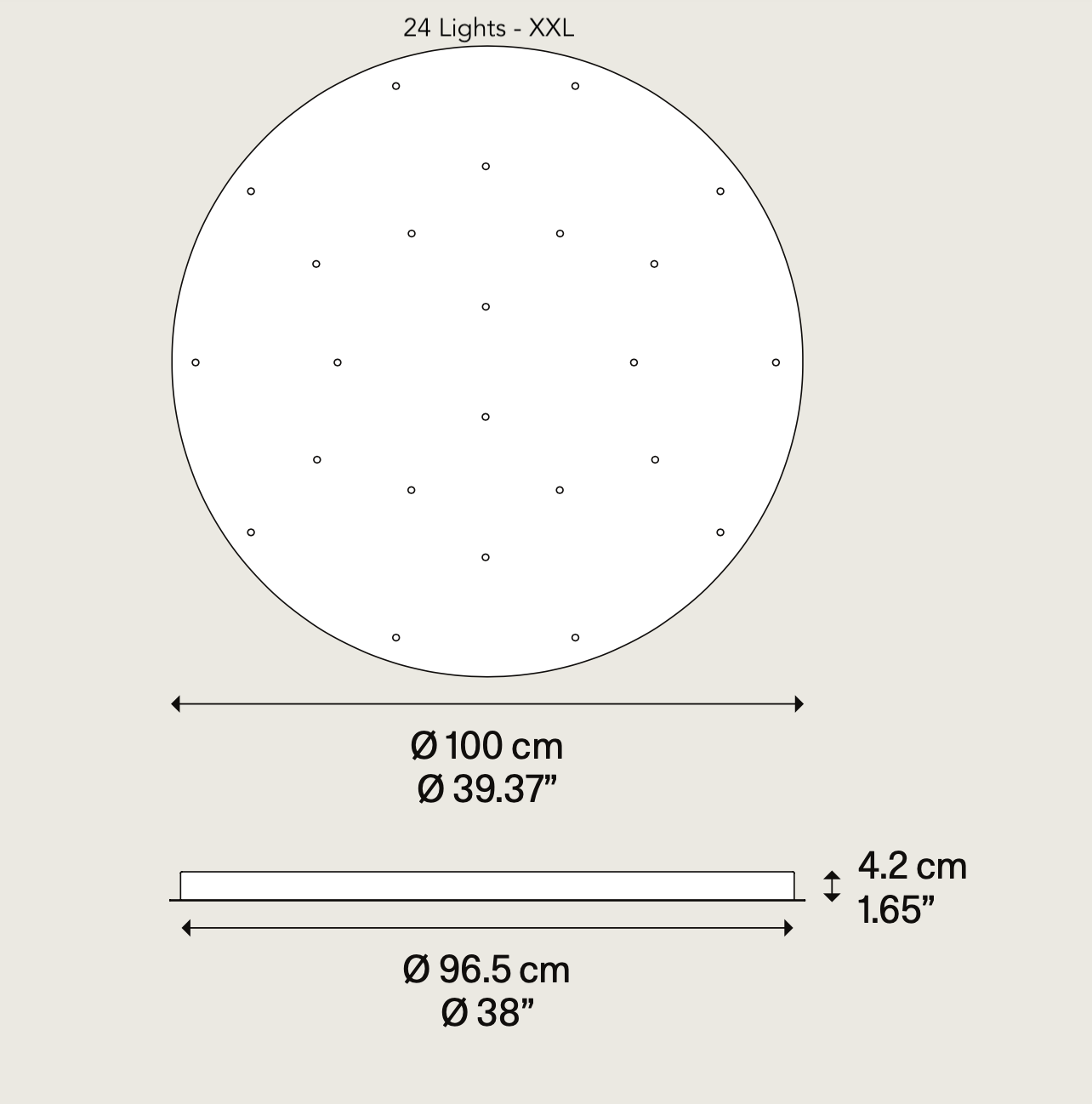

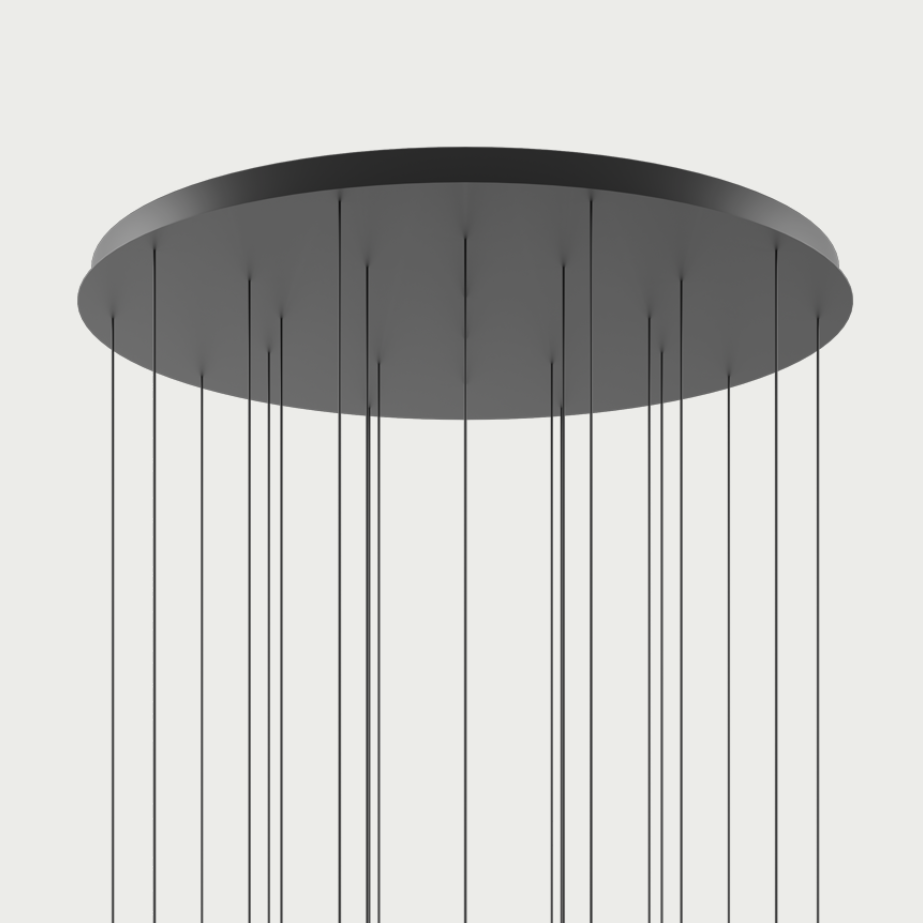

- XXL [24 units] 100 cm ø x 4.2 cm H

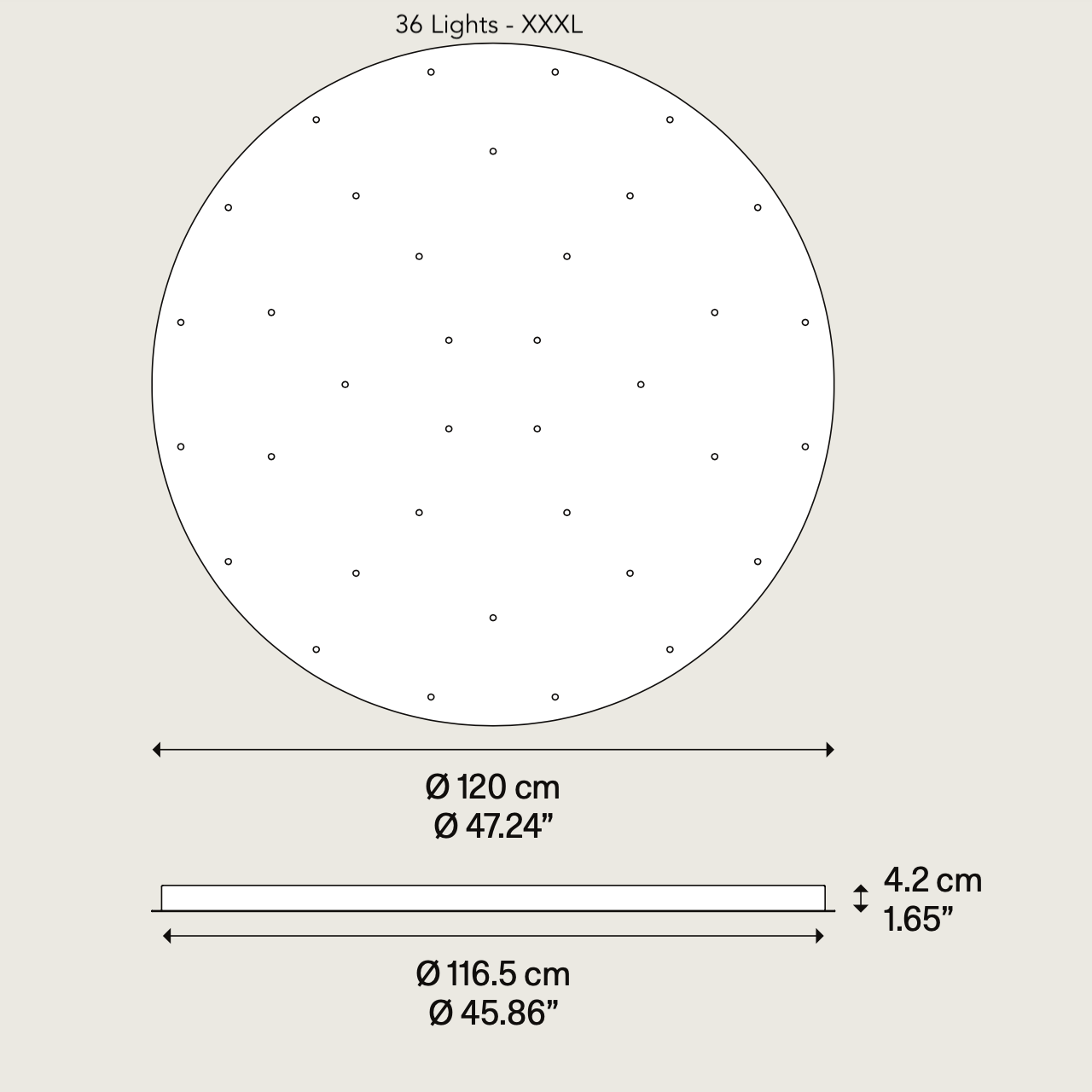

- XXXL [36 units] 120 cm ø x 4.2 cm H
Available finishes:

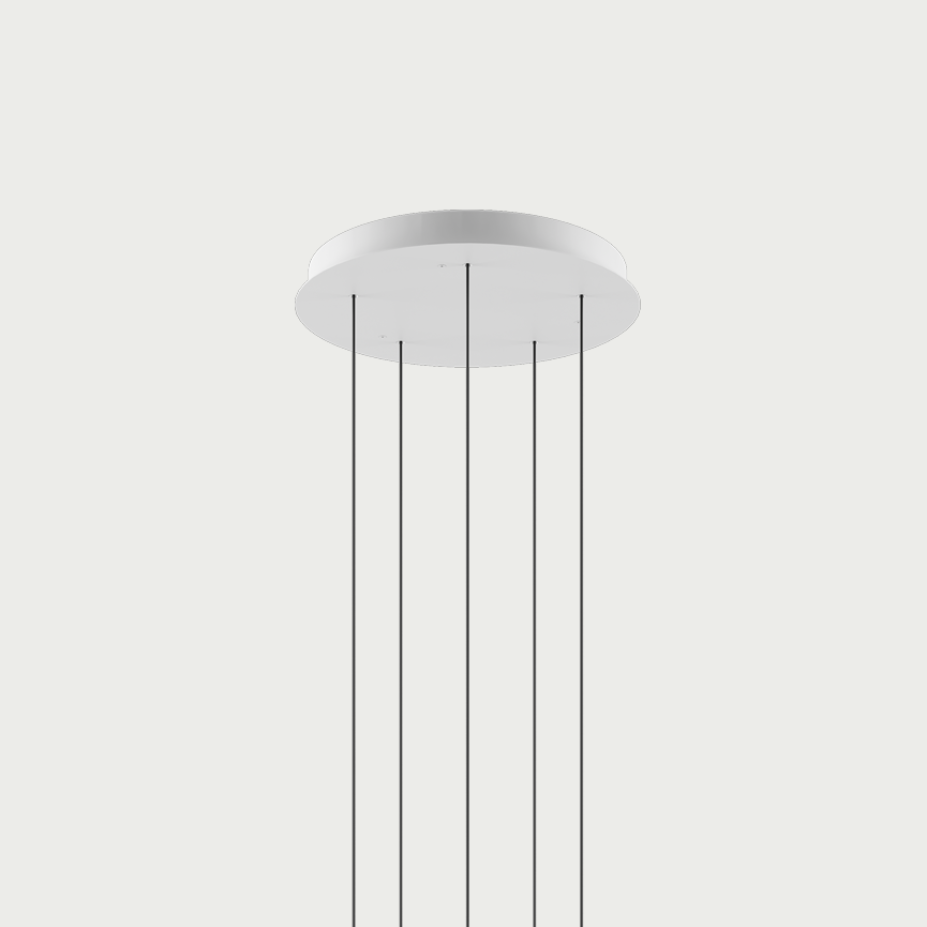

- White

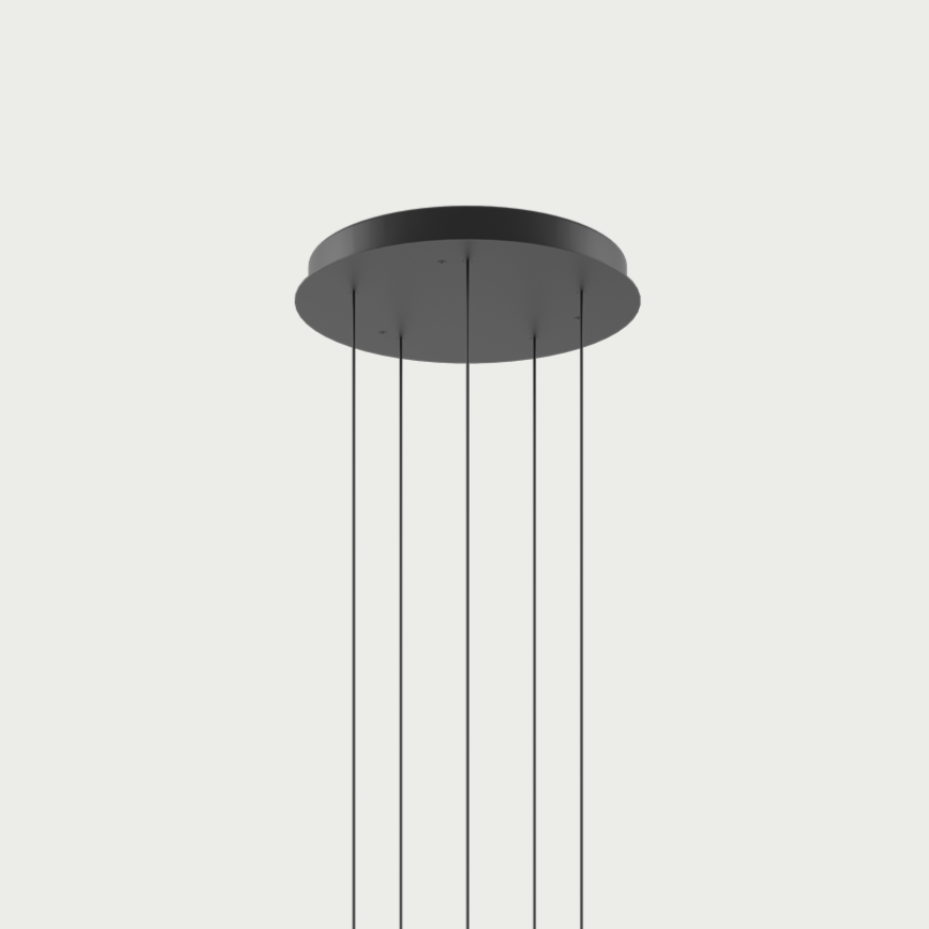

- Black
Good to note:
- Triac Dimmable LED
- The larger sizes are heavy
- You don't have to use the maximum amount of light fittings
- You can mix and match light fitting shapes & finishes

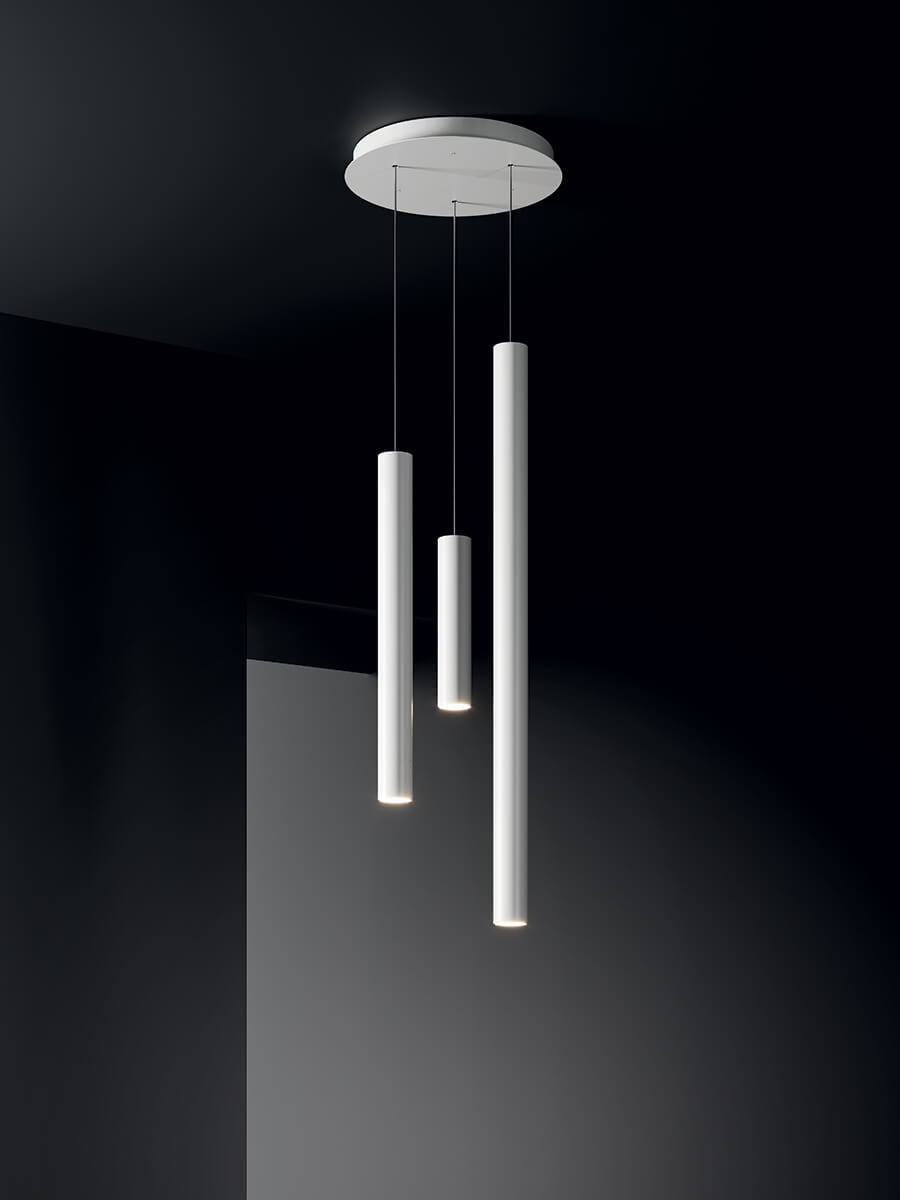

– the canopy with a diameter of 38 cm can be used for compositions of 3, 5 or 7 lights;

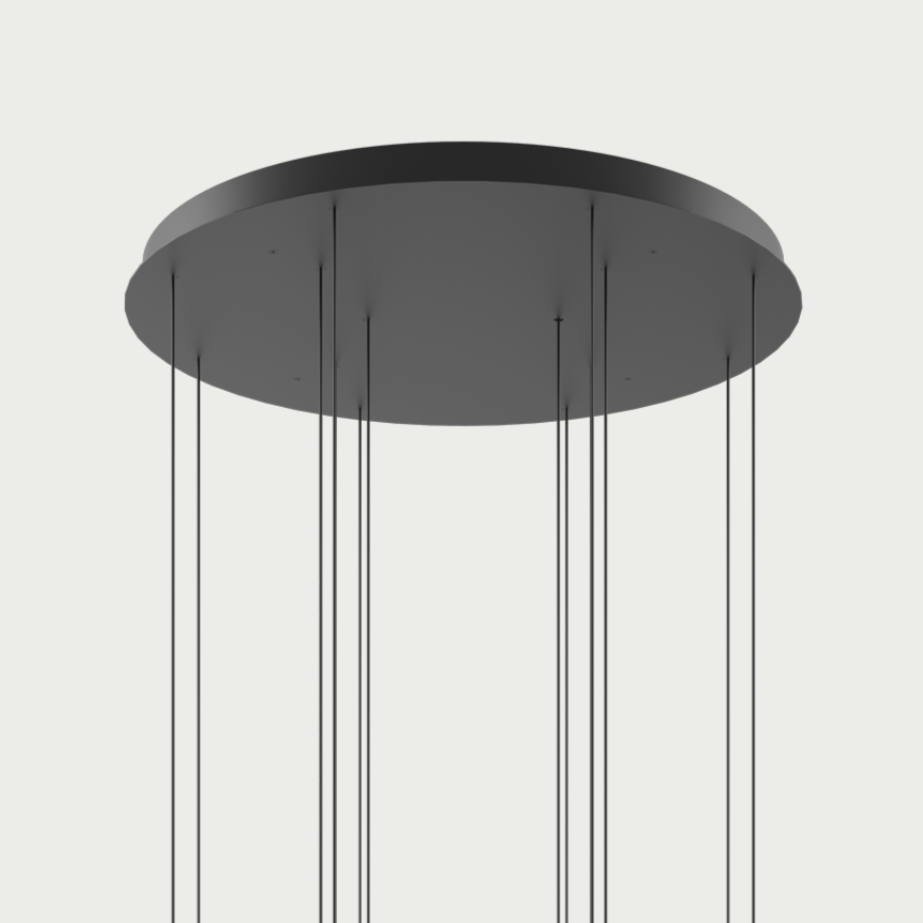

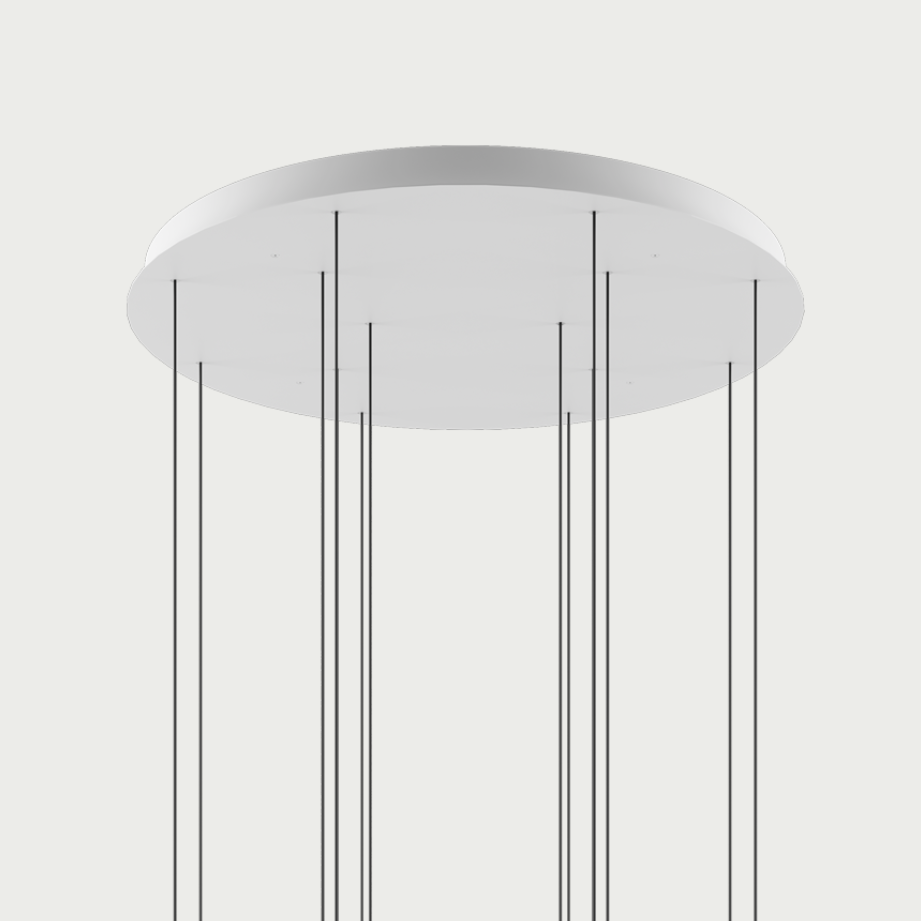

– the canopy with a diameter of 70 cm can hold up to 14 lights;

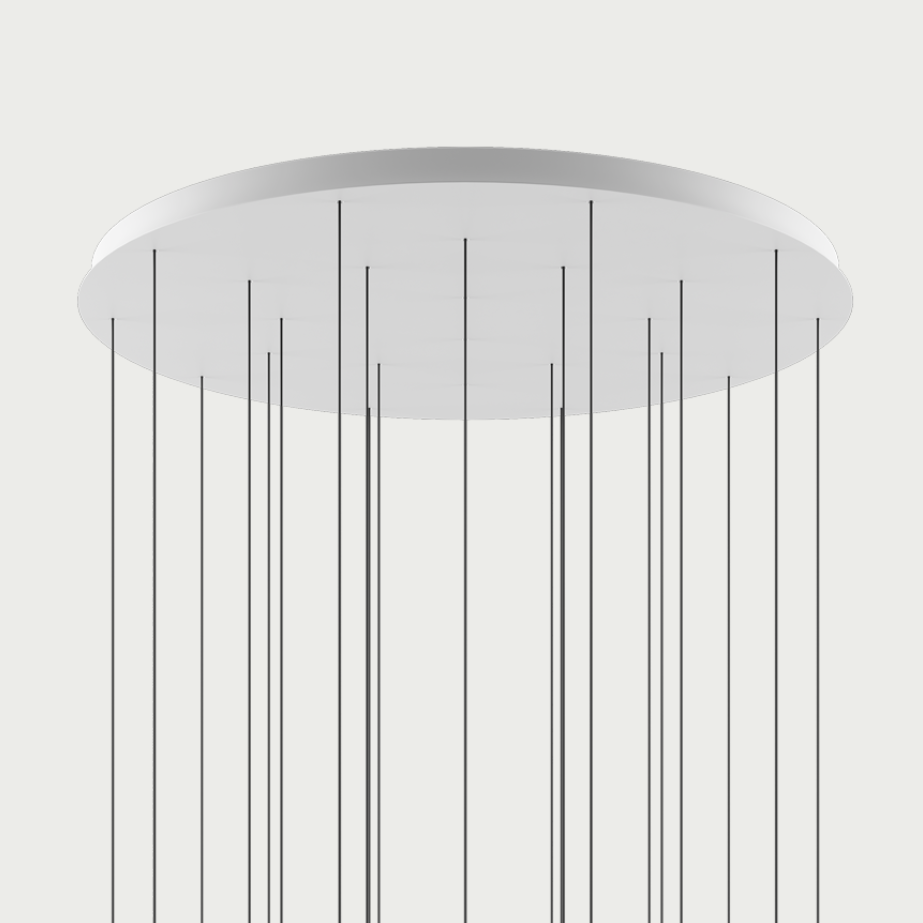

– the canopy with a diameter of 96 cm allows up to 24 lights to be suspended;

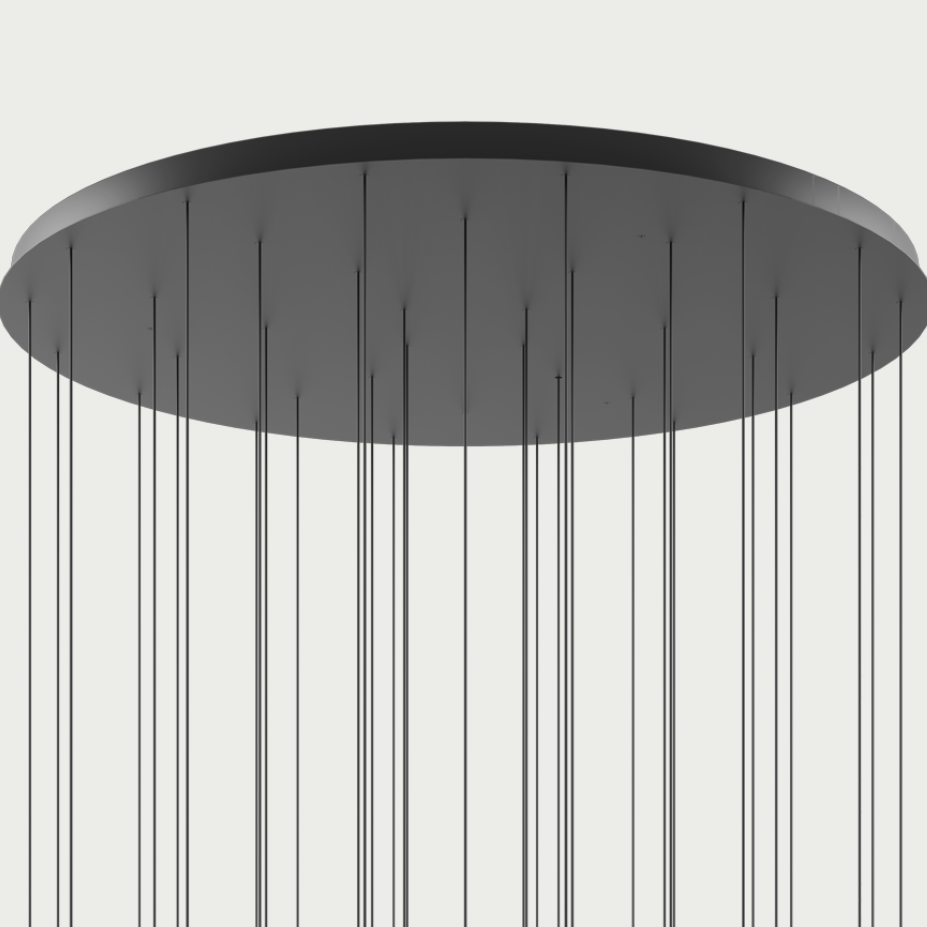

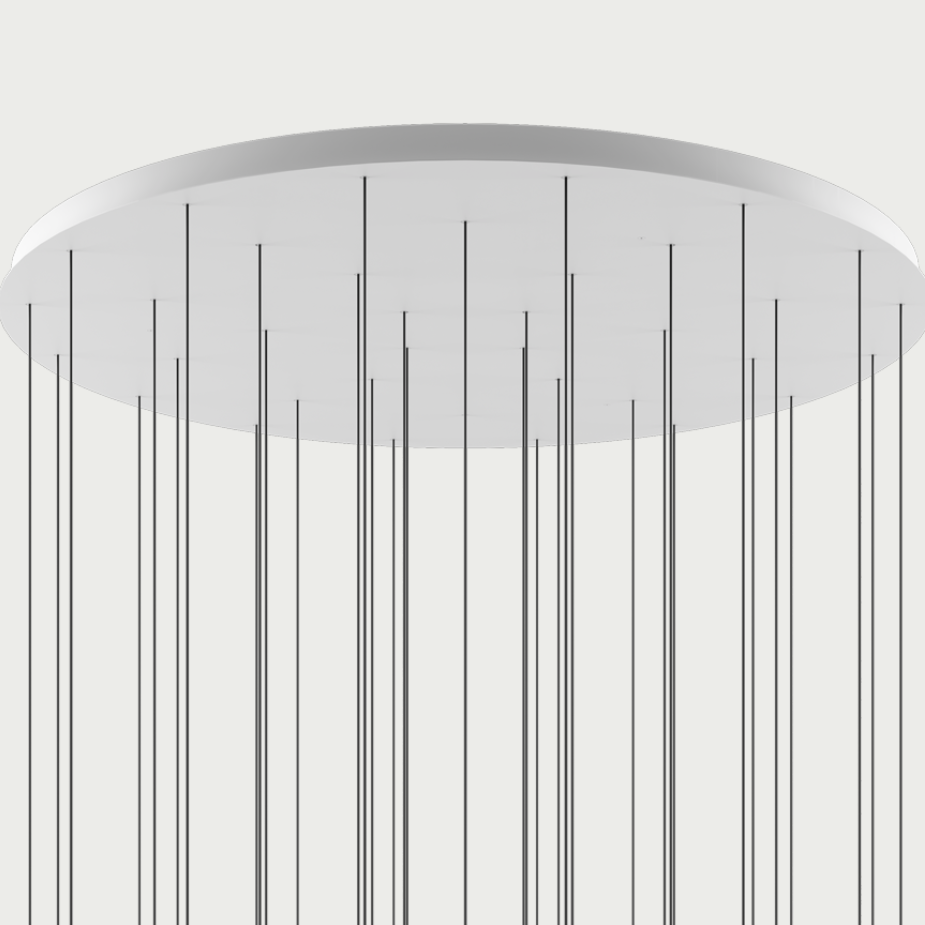

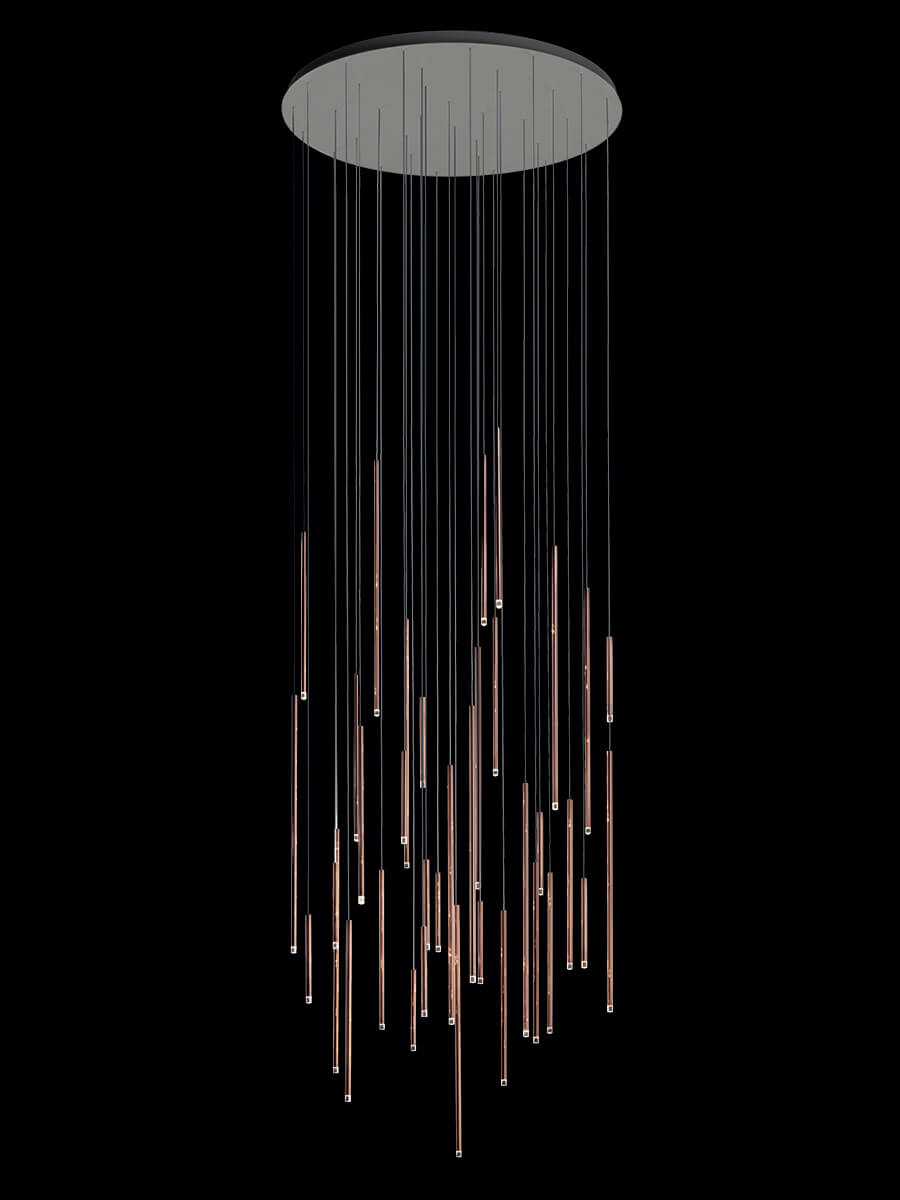

– the canopy with a diameter of 116.5 cm can be used for light installations with a maximum of 36 lights.
An ingenious system of electrical joints inside it allows to manage the single cable of each suspension light. Each light is calibrated directly, and the length of the cable is adjusted simply and rapidly.
The multiple round canopy is made of metal and available in a matte white (RAL 9010) and in matte black (RAL 9005) finishes and it is compatible with numerous light fixtures in the collection.
