Gras N302 Adjustable Pendant Linear Arm with Blue Metal Shade, IP20

Gras N302 Adjustable Pendant Linear Arm with Blue Metal Shade, IP20

Regular price £480.00 GBP
Regular price Sale price £480.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Length

What’s so special about this light …

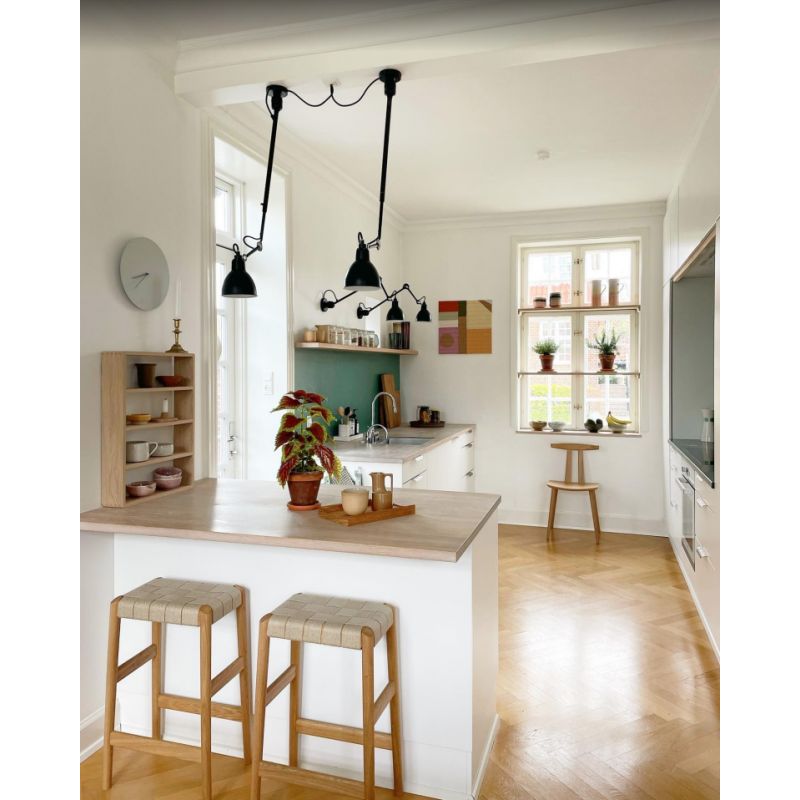

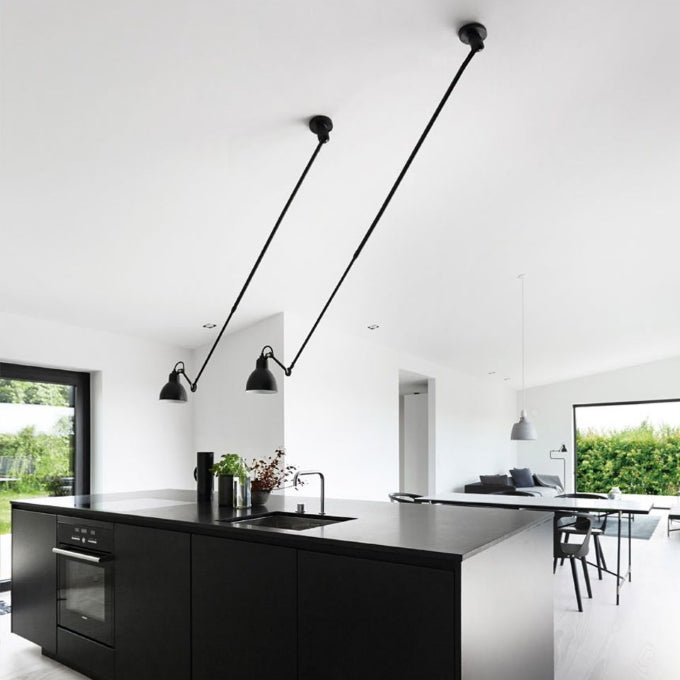

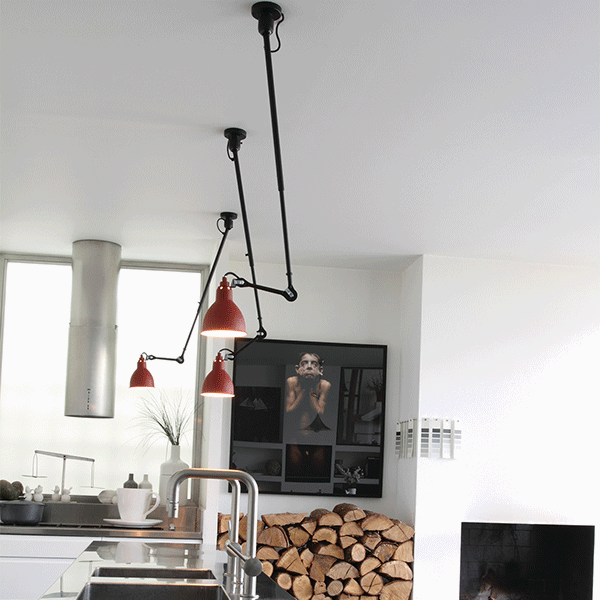

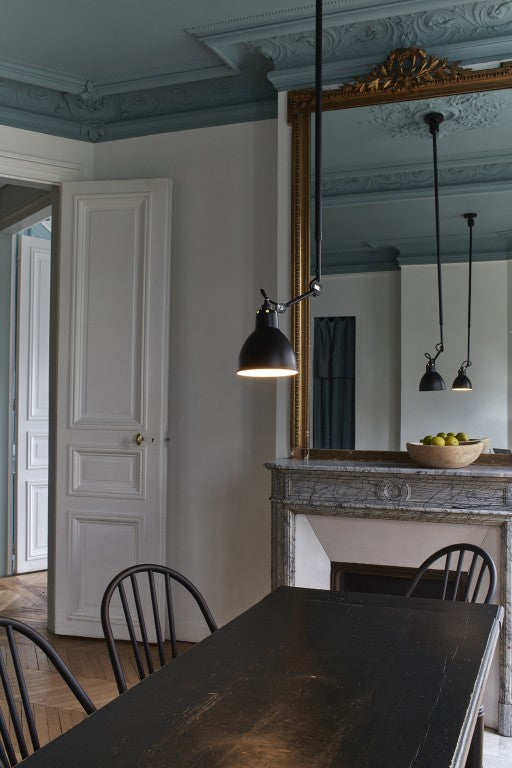

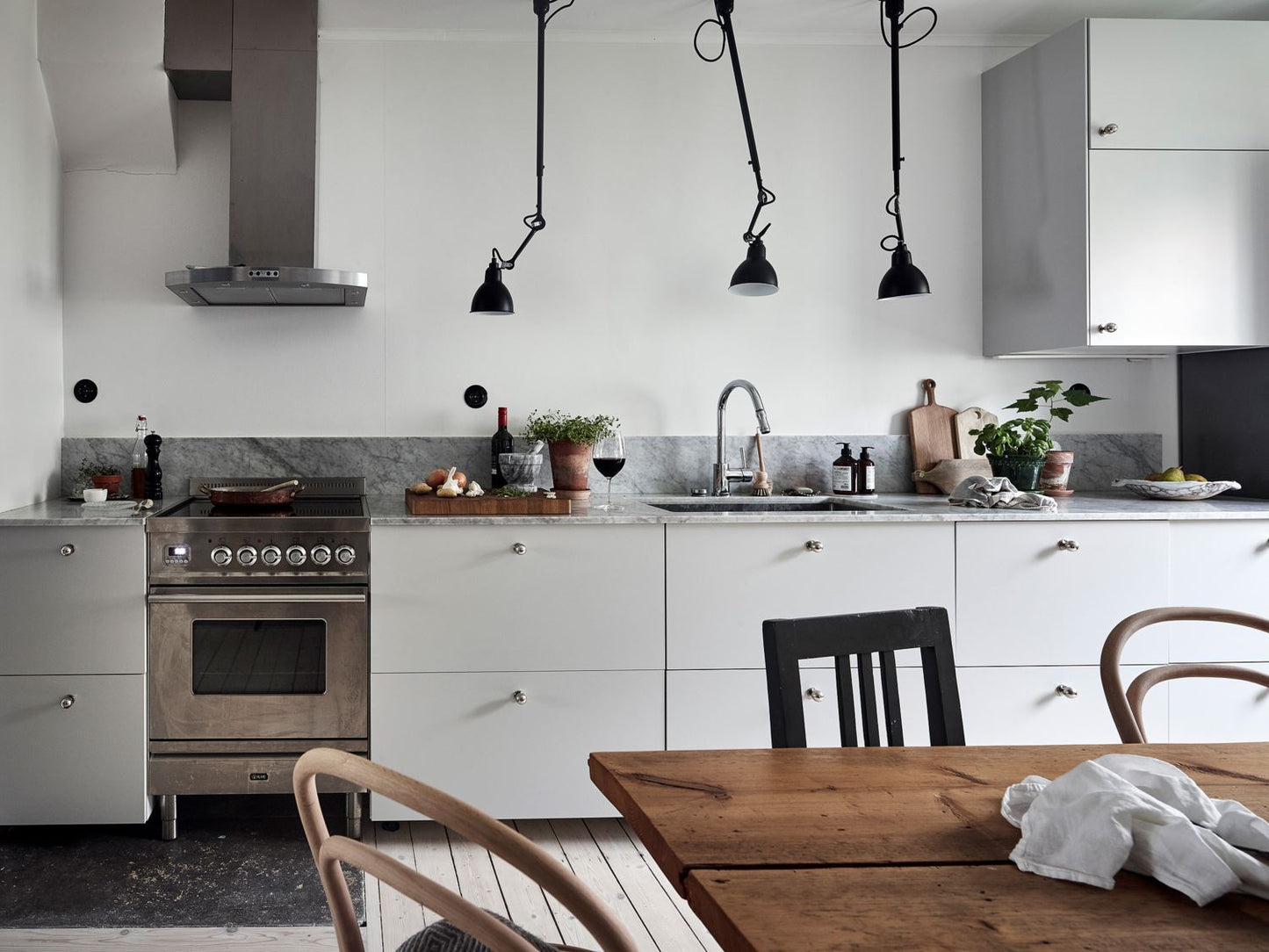

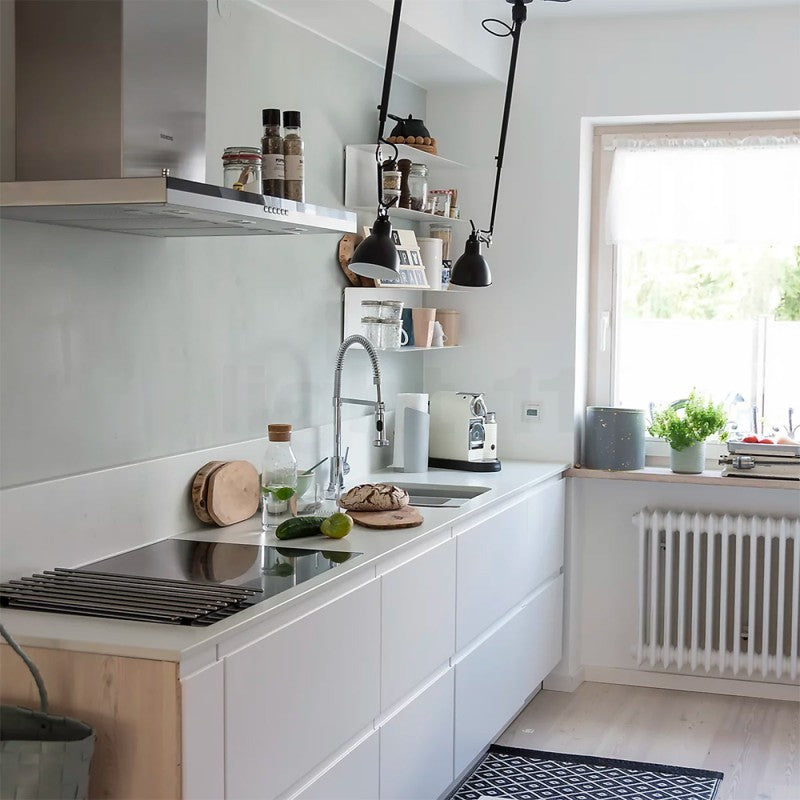

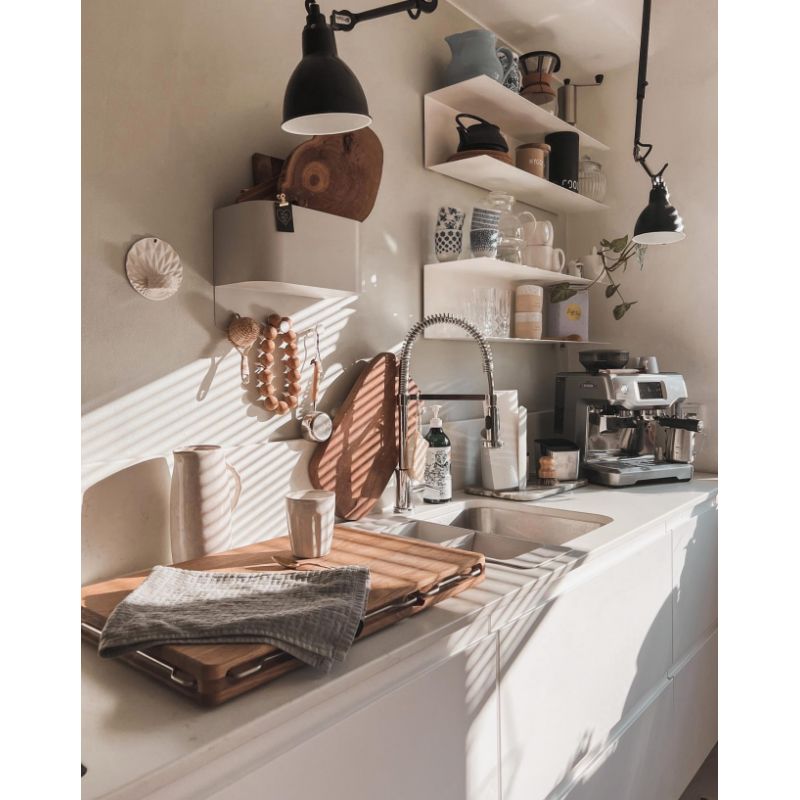

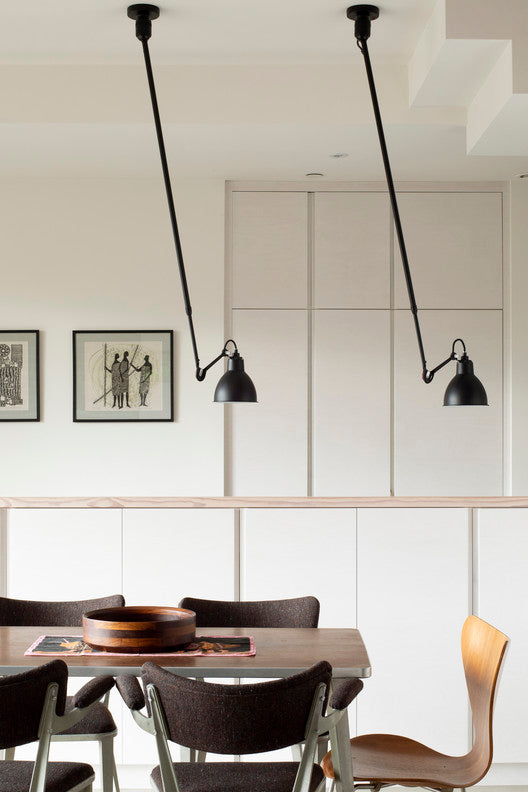

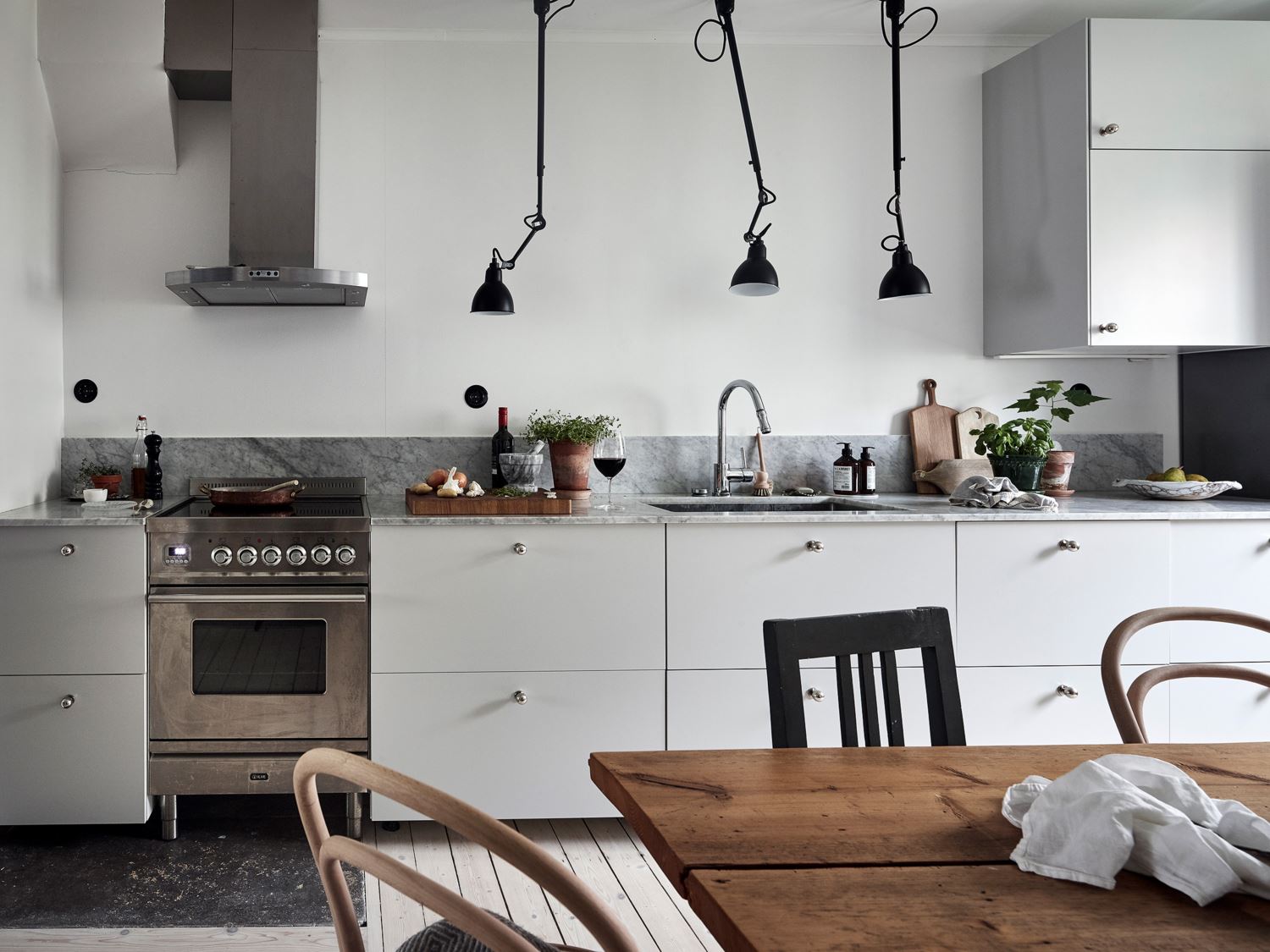

Design icon, this family of lights has been in production since 1921. The joints work without any screws or welding - built to last. This long, linear pendant has a handy telescopic arm, allowing you to either shorten it or extend it. You can even rotate the stem 360º. Furthermore, it moves 86º forwards and backwards. Works brilliantly over tables and kitchen islands where you want to make a statement as well as have very useful, flexible light. Very cool indeed. Some versions come in an extra long length (but not all - some shades are only available in the smaller size). The extra long length also offers a version with a glass sphere shade, in 2 diameters. The extra long version takes a big bulb as well.

Great for sloped ceilings, when you want to get the lights even.

E14 [standard size] or E27 [long size] bulb, not included.

From the manufacturers:

In 1921 Bernard-Albin GRAS designed a series of lamps for use in offices and in industrial environments. The GRAS lamp, as it was subsequently called, was astounding in its simple, robust and yet very ergonomic design. There are neither screws nor welded joints in the basic form. In 1927 the Ravel company purchased the patent and started production of the GRAS lamps.

Bernard-Albin Gras was one of the most innovative designer of the 20th century. The functional esthetic of his lamps and especially the design of details such as those of the arms, stems, brackets and bases were truly original and far ahead of his time. Early on Le Corbusier was seduced by the modern design and user-friendliness of the lamps and became one of Bernard-Albin GRAS’s most enthusiastic supporters using the lamps in his own offices as well as employing them in numerous architectural projects all over the world.

Worth Noting

  • This version is available with a choice of standard or long length
  • Requires wall switch to control - no thumbswitch on the body/shade
  • The arm is telescopic
  • The arm rotates 360º
  • The arm moves forwards and backwards 84º
  • The short arm moves 250º up and down
  • Shade is adjustable 210º
  • Small canopy (95 mm ø)
  • The shade is open on the bottom
  • The long version takes an E27 bulb
  • The standard version takes an E14 bulb
  • Bulb not included
  • Conical shade upon request
  • DALI upon request
  • I can't find the technical drawings for the longer version, not sure the canopy is the same size (tbc)

Dimensions

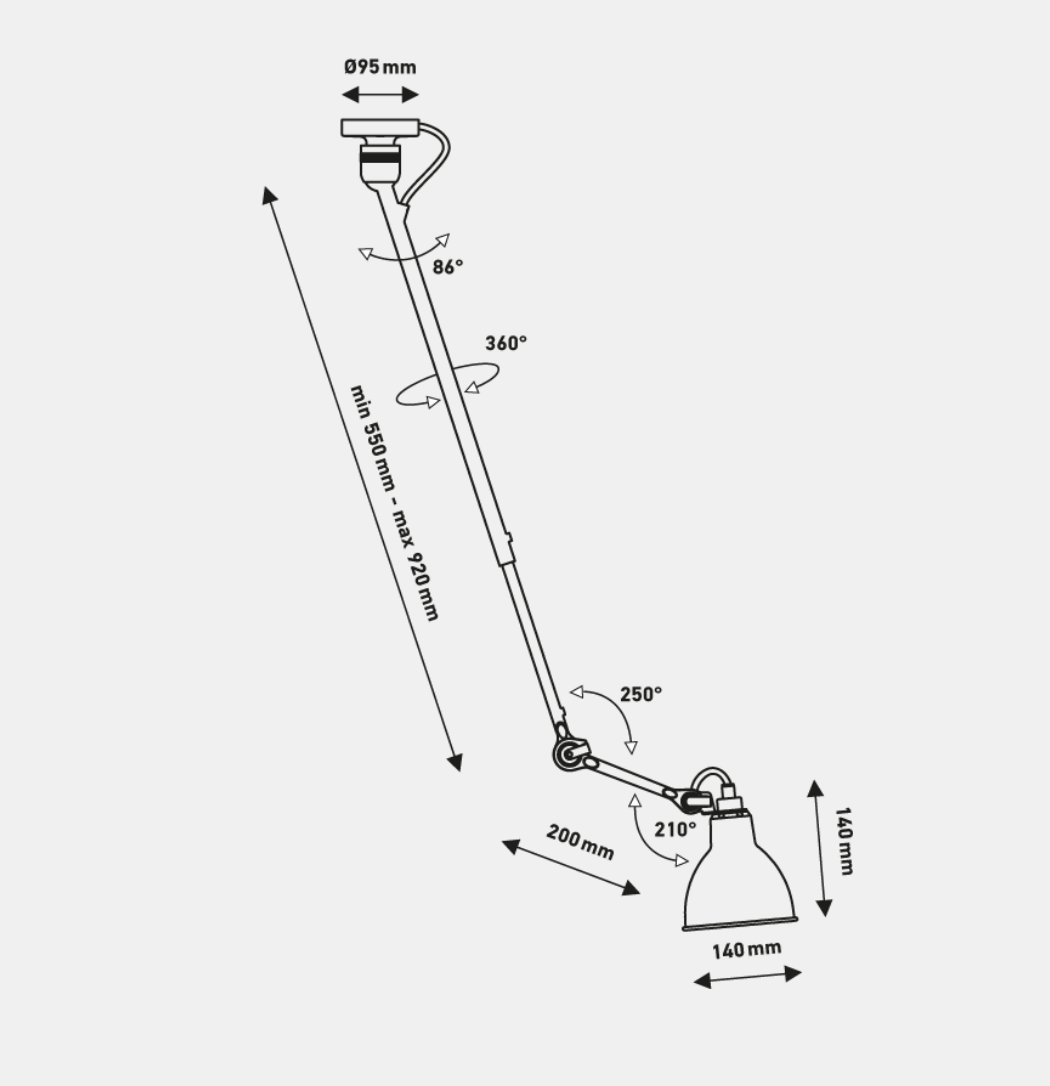

  • Standard: Shade 140 mm ø x 140 H / min 550 max 920 + 200 small arm + 140 shade / Canopy: 95 mm ø

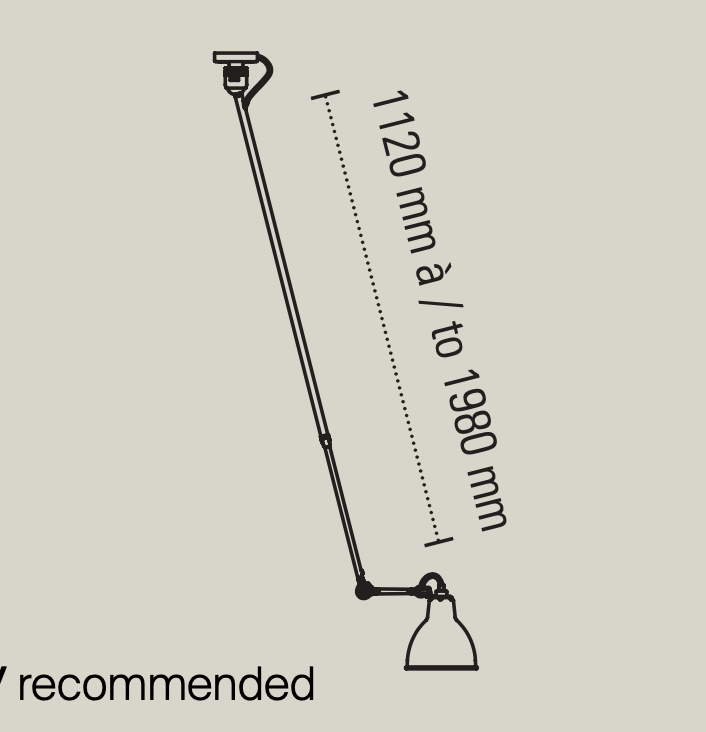

  • Long: Shade 153 mm ø x 152 H / min 1120 max 1980 + 200 small arm + 153 shade / Canopy: TBC

Weight

  • Standard: 2,3 kg
  • Long: 3,9 kg

IP Rating

  • IP20

Lamping

  • Bulb
  • E14 x1 / 15W [standard length]
  • E27 x1 / 23W [long length]
  • Not Included

Finishes:

  • Black Steel Body
  • Blue Steel Shade with White Interior

Control

  • Dimmable - via wall switch (no thumbswitch)
